DualView Series · Indoor Fixed Installation

DualView Indoor Dual-Sided LED Display

Name: DualView Indoor Dual-Sided LED Display
Brand: Uniview LED

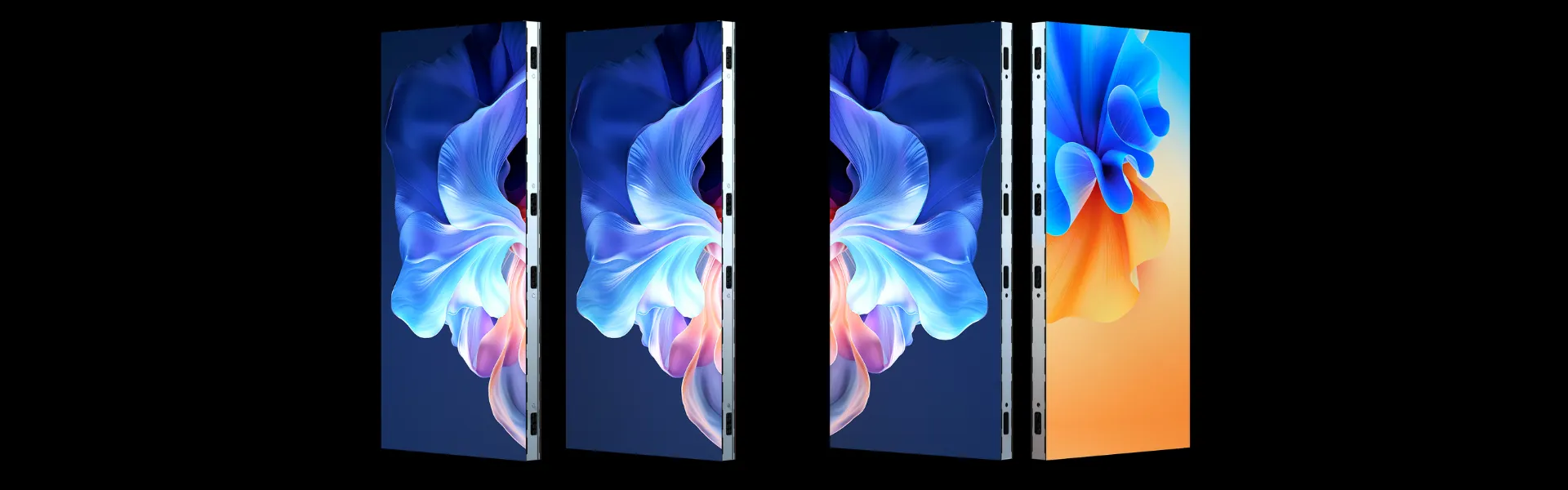

DualView combines two LED display faces in one 47 mm cabinet structure for retail storefronts, shopping malls, airports, corporate lobbies and other indoor locations where audiences approach from both directions.

Discuss Your DualView Project

47 mmCabinet depth

Up to 7680 HzConfiguration-dependent refresh rate

600–800 nitIndoor brightness range

140° / 140°Horizontal / vertical viewing angle

Product Overview

One slim structure, two active display faces

DualView integrates two active LED faces in one 47 mm structure for long-term indoor fixed installation. Each face can run synchronized or independent content without the depth and duplicated support structure of two back-to-back screens.

Model selection should follow the active display dimensions, nearest viewing distance, ambient light, native resolution, cabinet map, maintenance access and support method.

Final cabinet mapping, control-system capacity and structural details are project-specific. Confirm the approved project datasheet and drawings before production.

Module platform250×250 mm

Content modesSynchronized or independent by face

Grayscale13–15 bit by configuration

Service methodFront-service access

IP ratingIP30 front / IP30 rear

Primary useIndoor dual-direction traffic areas

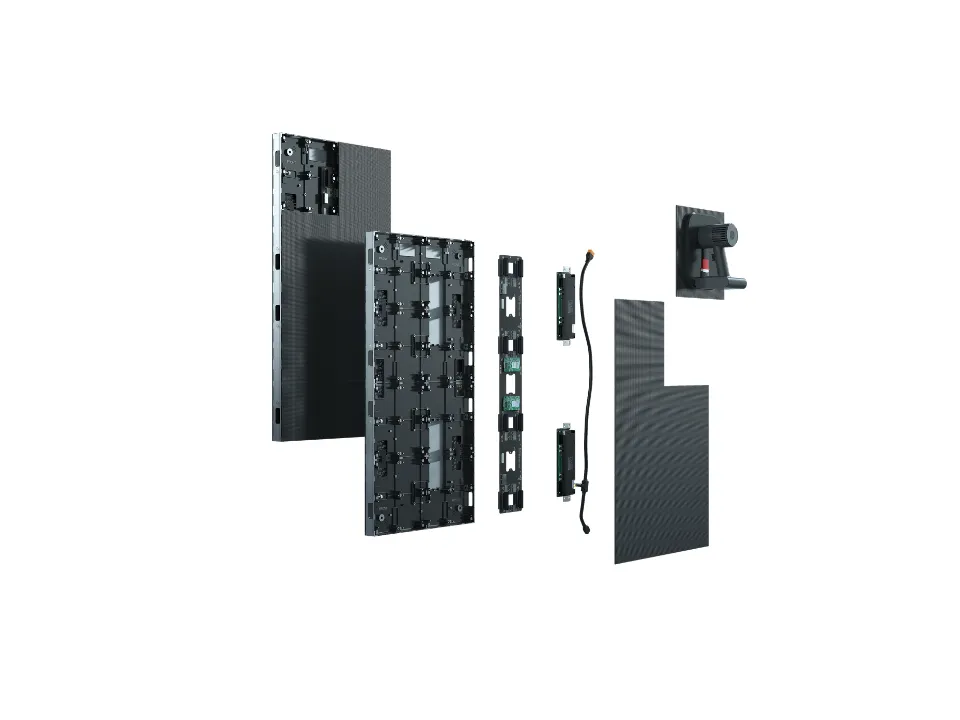

DualView front-service LED modules and hard-connected HUB maintenance structure

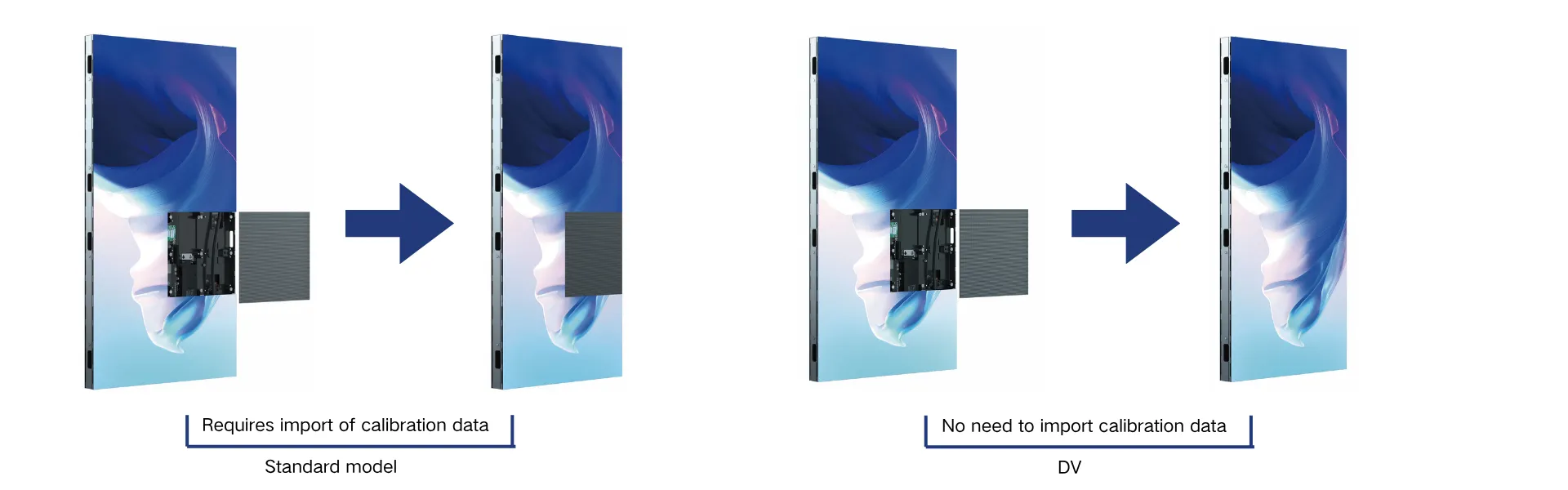

DualView intelligent LED module with stored calibration data

Service & Calibration

Front-service maintenance with calibration recovery

Modules are removed from the viewing face, avoiding a conventional rear service corridor. The hard-connected HUB architecture simplifies internal power and data distribution, while the optional intelligent module stores calibration data for faster replacement and more consistent brightness and color.

Confirm access to both faces, controller compatibility, spare-module preparation and calibration-file management during commissioning.

Installation Methods

Suspended or Floor-Supported Installation

DualView supports suspended and floor-supported structures. Suspended systems can reach up to 10 m when the specified SUS304 fasteners and an approved support design are used.

Verify dead load, support points, seismic requirements, service access and local codes.

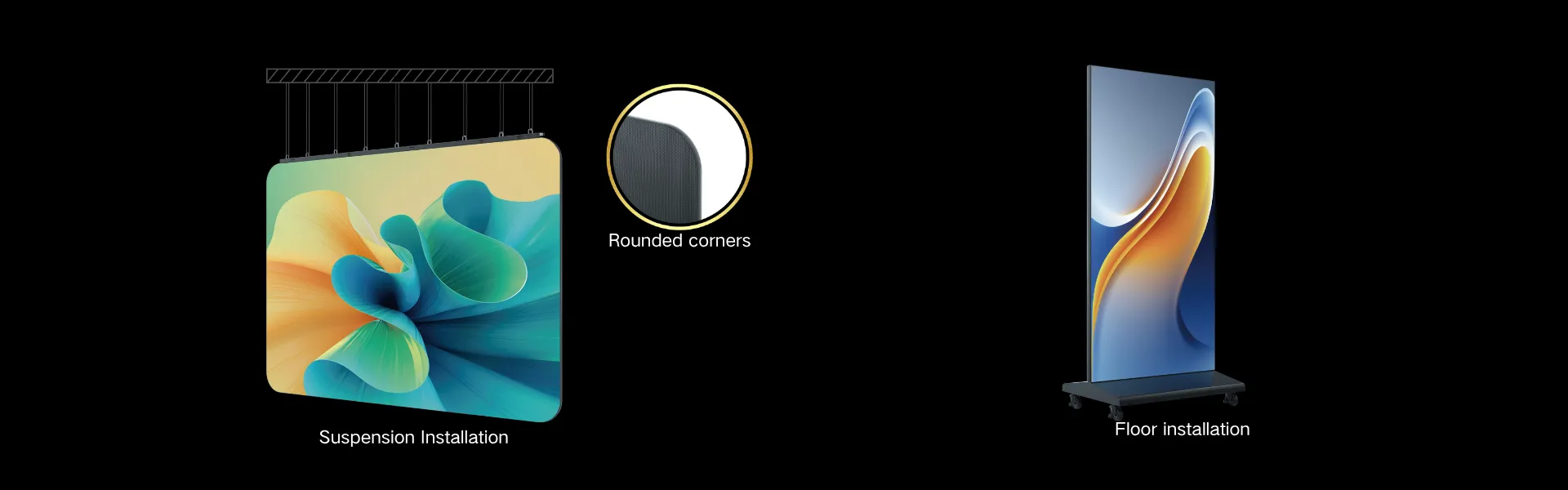

DualView suspended and floor-supported dual-sided LED display installation configurations

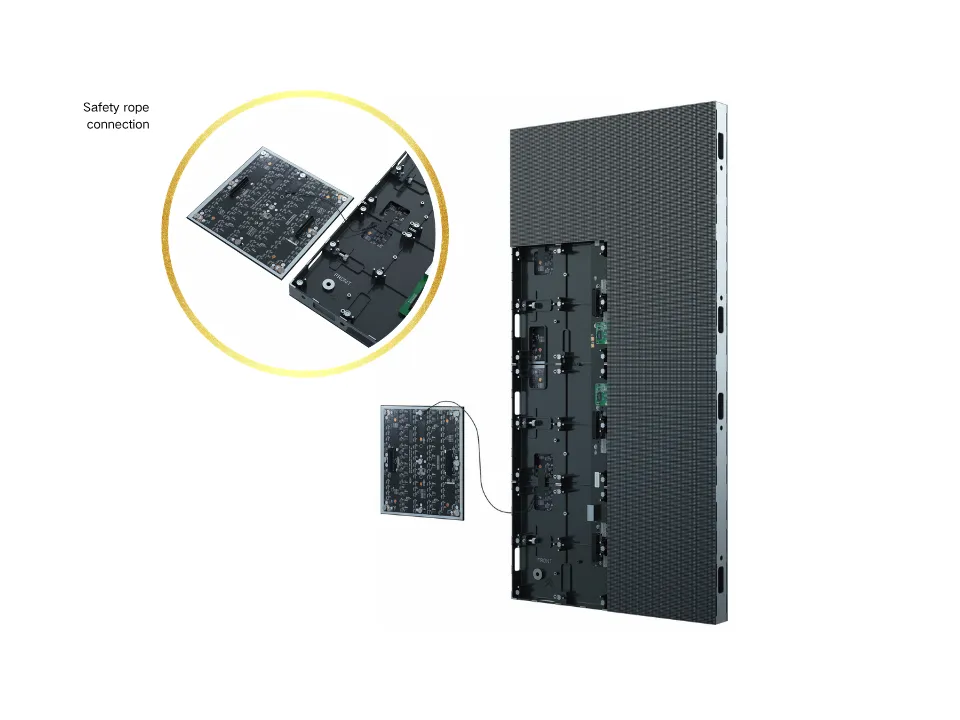

DualView LED module steel safety rope anti-fall design

Secondary module retention

Each module includes a steel safety rope rated for up to 15 kg tensile force. It is secondary retention only and does not replace the primary support structure or certified rigging hardware.

Engineering Priorities

Engineering details that affect long-term image quality

Resolve cabinet alignment, content mapping, signal topology, electrical load and commissioning criteria before production.

01 · Cabinet Alignment

Flatness and Z-axis control

Coordinate cabinet leveling, module alignment and support tolerances to control visible seams on both display faces.

02 · Content Mapping

Native resolution for each face

Calculate native resolution from active dimensions and pixel pitch, then map each face to the controller and source workflow.

03 · Signal Topology

Independent or synchronized playback

Define synchronized or independent playback, receiving-card routing, controller capacity and any required signal redundancy.

04 · Electrical Design

Maximum load, not average only

Size branch circuits from maximum W/m², then add controller, accessory, derating and thermal allowances.

05 · Commissioning

Camera, brightness and seam checks

Verify refresh rate, grayscale, white balance, brightness, seam consistency and camera performance under final site conditions.

Applications

Applications for two-way audience traffic

Use DualView where one display position must serve audiences moving in opposite directions.

Retail & Shopping Malls

Storefronts, atriums and corridors can present campaign content to opposing pedestrian flows from one slim display position.

Airports & Transportation Hubs

Suspended systems can deliver advertising, wayfinding or passenger information to traffic approaching from both directions.

Corporate Lobbies & Experience Centers

Independent content on each face can support reception, visitor guidance and branded storytelling without a deep rear-service enclosure.

Broadcast & Media Environments

Configurations up to 7680 Hz support camera-facing use when the controller, scan settings, brightness and camera parameters are commissioned together.

Commercial Interiors & Indoor Advertising

Floor-supported or suspended screens can increase usable exposure in showrooms, hospitality spaces and mixed-use developments with limited floor area.

Project Video

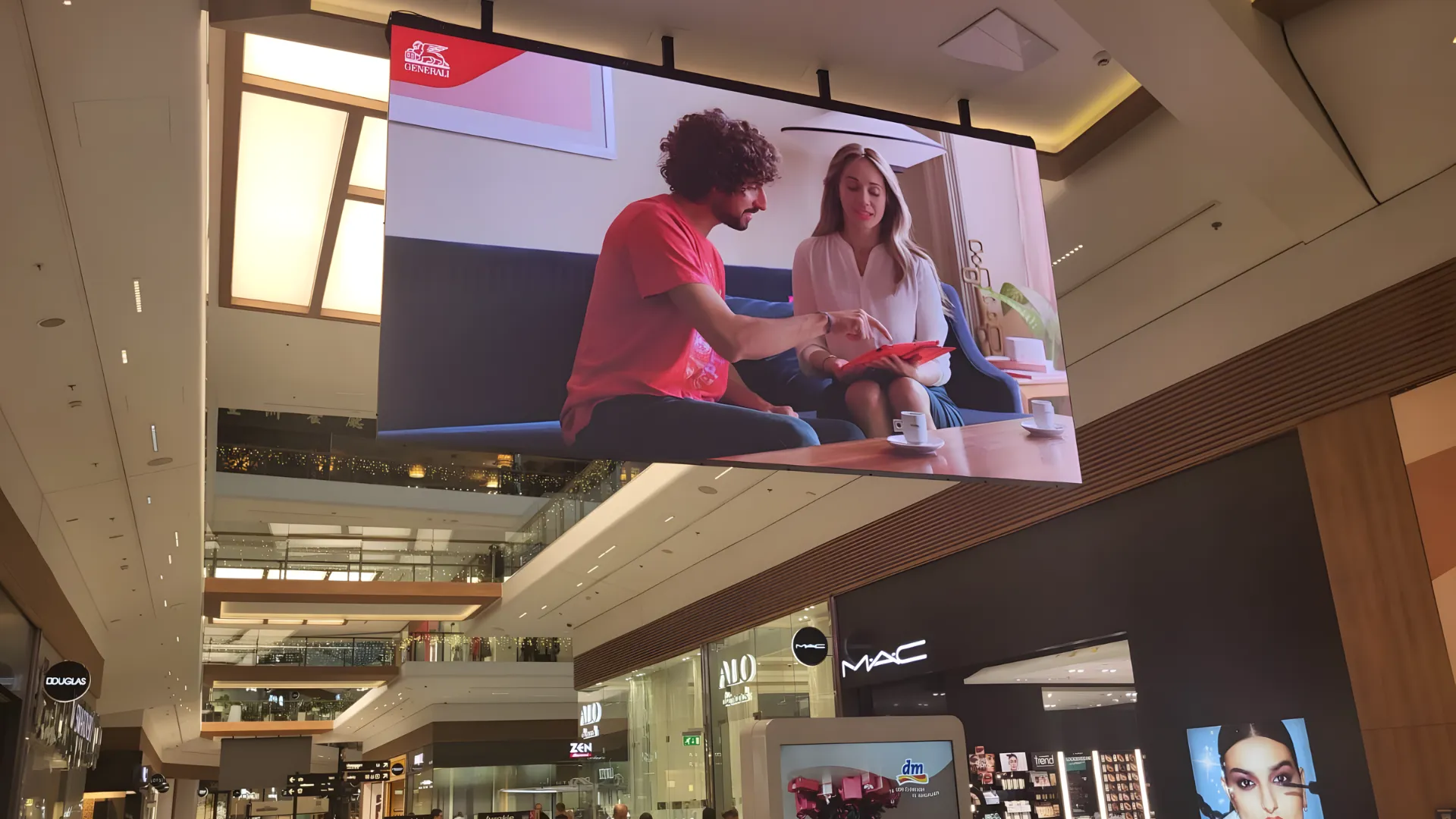

Dual-sided LED installation in a Spanish shopping mall

A slim suspended structure delivers content to opposing shopper flows from one display position.

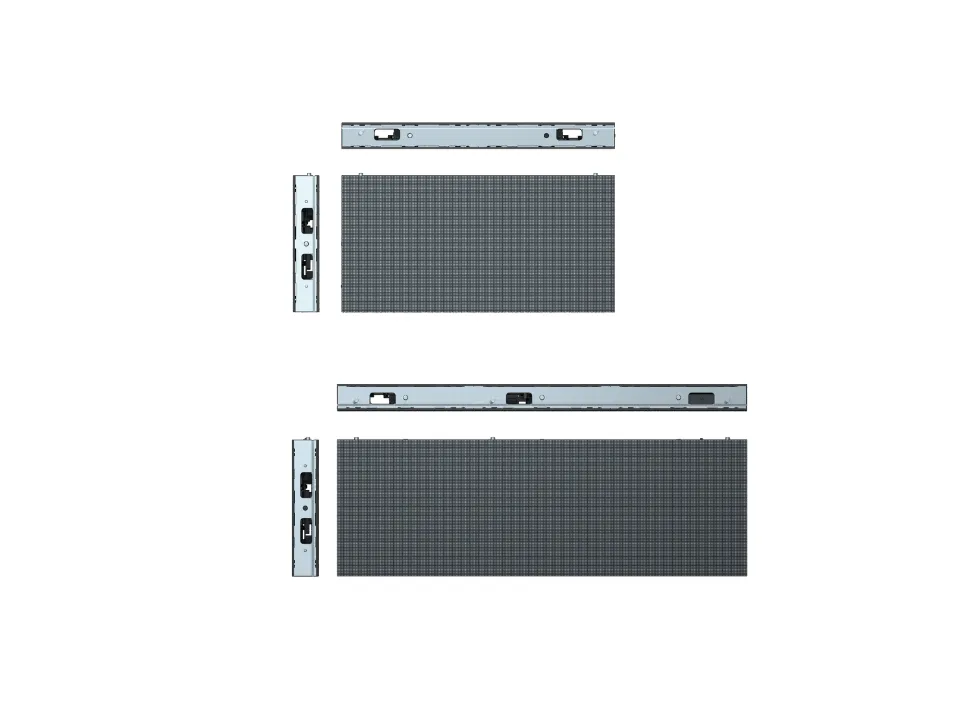

DualView LED cabinet size configurations and 47 mm cabinet depth

Cabinet Size Matrix

Five cabinet formats on one 47 mm platform

Available formats are 500×1000, 500×250, 250×500, 750×250 and 250×750 mm. Confirm orientation, mounting interfaces and final weight on the approved cabinet drawing.

500×1000×47 mm16 kg

750×250×47 mm / 250×750×47 mm6 kg · horizontal/vertical pair

500×250×47 mm / 250×500×47 mm4.8 kg · horizontal/vertical pair

Module platform250×250 mm

Mixed-size layouts require an approved cabinet map covering module orientation, mechanical interfaces, receiving-card mapping and support tolerances.

Core Specifications

DualView technical specifications

Six core parameters are shown for faster project comparison: pixel pitch, brightness, refresh rate, cabinet size, cabinet weight and power consumption. Confirm the approved project datasheet before production.

Swipe horizontally to compare models.

Specification	DV1.5	DV1.9	DV2.6	DV2.97	DV3.12	DV3.91
Pixel Pitch (mm)	1.562	1.953	2.604	2.976	3.125	3.906
Brightness (nit)	600	800
Refresh Rate (Hz)	3840	7680
Cabinet Size (W×H×D mm)	500×1000×47 / 750×250×47 / 500×250×47
Cabinet Weight (kg/panel)	16 / 6 / 4.8 by cabinet size
Power Consumption (Max/Avg W/m²)	840 / 280				800 / 270

Project Support

From cabinet mapping to commissioning

Project support covers pixel-pitch selection, active dimensions, native resolution, cabinet mapping, structural coordination, power and signal planning, calibration, seam checks and remote technical assistance.

Buyer FAQ

Dual-Sided Indoor LED Display FAQ

Six common buyer questions covering pixel pitch, independent content, project cost, front maintenance, suspended installation and indoor protection.

01How do I choose the right pixel pitch for a double-sided indoor LED display?

Choose pixel pitch from the closest regular viewing distance, active dimensions, content detail and target resolution. DV1.5 is the natural starting point for the closest viewing, followed by DV1.9, DV2.6, DV2.97 / DV3.12 and DV3.91 as viewing distance increases. Final selection should also consider ambient light and total project budget.

02Can a double-sided LED display show different content on each side?

Yes. DualView can run synchronized content on both faces or independent content on each face when the controller capacity, receiving-card routing and signal topology are configured for that workflow. Define the source resolution, playlist schedule, frame rate and any backup-signal requirement before production.

03How much does a double-sided indoor LED display cost?

There is no reliable single price because total project cost changes with pixel pitch, total display area, cabinet map, control system, support structure, suspension hardware, power distribution, installation, freight and technical support. For an accurate DualView quotation, provide both-face dimensions, viewing distance, installation method, project country and content-control requirements.

04How is a 47 mm double-sided LED display maintained without a rear service corridor?

DualView uses front-service access from both viewing faces, so modules can be removed without a conventional rear service corridor. The hard-connected HUB architecture simplifies internal distribution, while optional intelligent modules can retain calibration data. The site must still provide safe technician access to both faces and adequate service-tool clearance.

05Can a double-sided LED display be suspended in a shopping mall or airport?

Yes. DualView supports suspended and floor-supported installations. The supplied product material allows suspended structures up to 10 m when the specified fasteners, approved support points and project-specific structural design are used. Final dead load, rigging hardware, seismic requirements, safety factors and venue rules must be approved by the responsible engineer.

06Can an IP30 double-sided LED display be installed outdoors?

No. The standard DualView configuration is an indoor product rated IP30 front and rear. It should not be directly exposed to rain, condensation, wind-driven dust or outdoor environmental conditions. Use an outdoor-rated product when the installation is exposed to weather or uncontrolled moisture.
