Outdoor Fixed LED Display

RK Pro Outdoor LED Display for DOOH, Facade & Billboard Projects

Name: RK Pro Outdoor LED Display
Brand: Uniview LED

RK Pro is a 960×960 mm outdoor fixed LED display platform available in P6.67 and P10. It combines 7000 cd/m² brightness, 7680Hz refresh rate, IP67/IP65 protection and front/rear service access for long-term billboard, facade and public-information projects.

Request Project Configuration

P6.67 / P10 pixel pitch7 m / 10 m minimum viewing distanceAC 100–240V input

960 mm

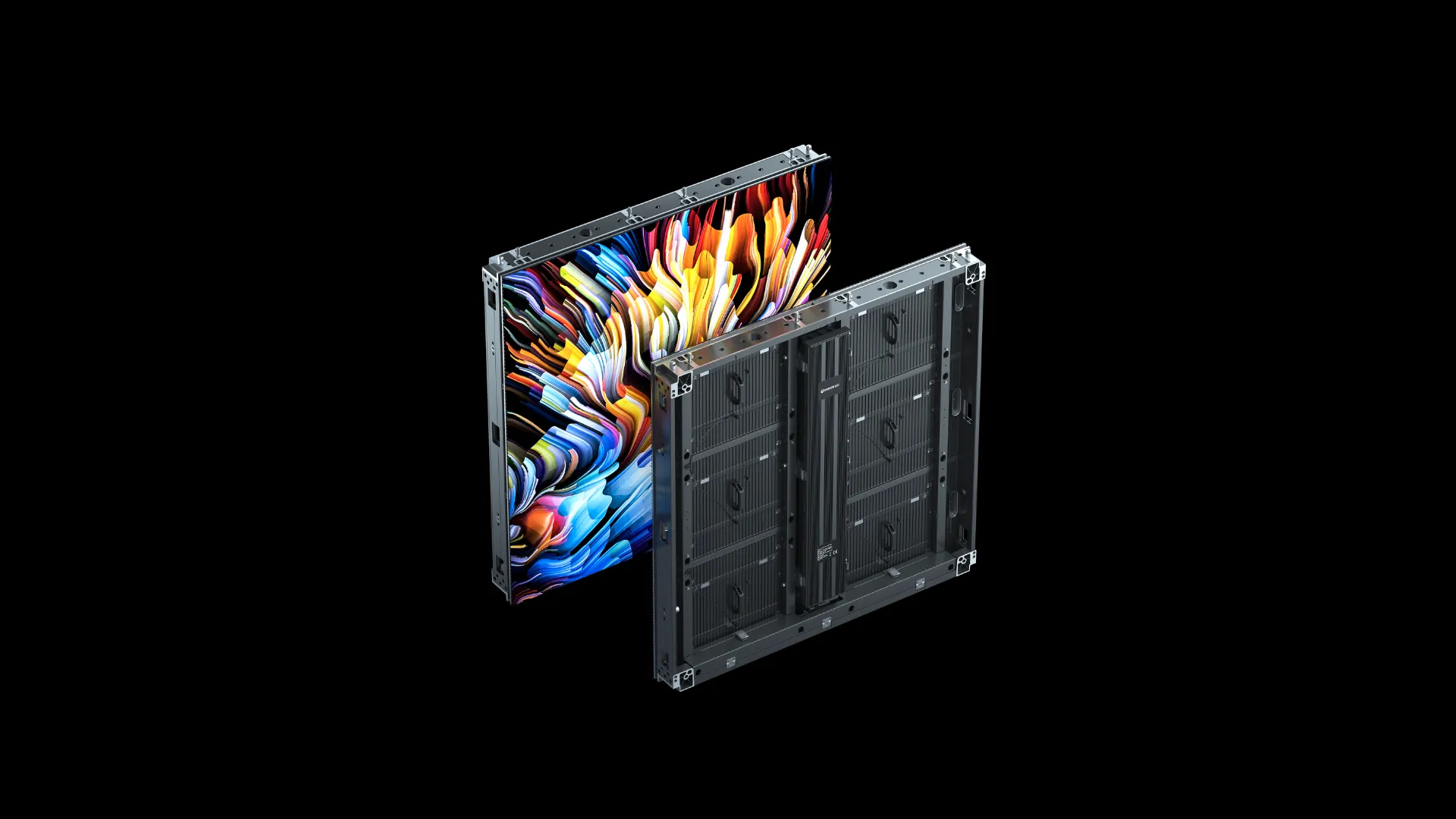

RK Pro outdoor fixed LED display cabinet for DOOH and facade installations

CABINET REFERENCE / NOT FOR FABRICATION

7000cd/m² daylight output

IP67 / IP65front / rear protection

7680 Hzrefresh rate

27 kgper 960×960 cabinet

91.5–93.4mm cabinet depth

Product Overview

A Fixed Outdoor Platform Built Around Project Constraints

RK Pro is designed for outdoor installations where cabinet mapping, weather protection, mounting structure, heat management and maintenance access must be confirmed before production. P6.67 and P10 share a 960×960 mm cabinet footprint, simplifying screen layout while supporting different viewing distances.

Die-cast aluminum cabinet
Front and rear service
Fixed or hanging installation
45° corner configuration

RK Pro die-cast aluminum outdoor LED cabinet and reinforced frame structure

System Anatomy

Inside the 960 × 960 outdoor cabinet.

RK Pro is easier to understand as one serviceable outdoor system: power and data routing, service direction, sealing, structure and technician access all meet inside the same cabinet envelope.

RK Pro outdoor LED cabinet with concealed power and data cable routing — NODE 01Concealed power & data routing

960mm cabinet module

Integrated cable routing reduces exposed loops and keeps cabinet-to-cabinet inspection cleaner. Cable length, bend radius, connector sealing and signal topology still belong in the final system drawing.

FRONT ↔ REAR Two service directions in one platform

RK Pro outdoor LED display front and rear service access — NODE 02Front & rear maintenance

AccessConfirm module, power-supply and receiving-card removal direction before steelwork and cladding are finalized.

IsolationSafe technician access and electrical isolation remain project requirements even when front service is selected.

SealingOutdoor performance depends on connector sealing, drainage, cable entries and installation workmanship.

Operating Envelope

Four limits define the engineering boundary.

These values come from the RK Pro P6.67 and P10 technical parameter sheets. They are reference points inside the project design—not substitutes for structural, electrical or environmental calculations.

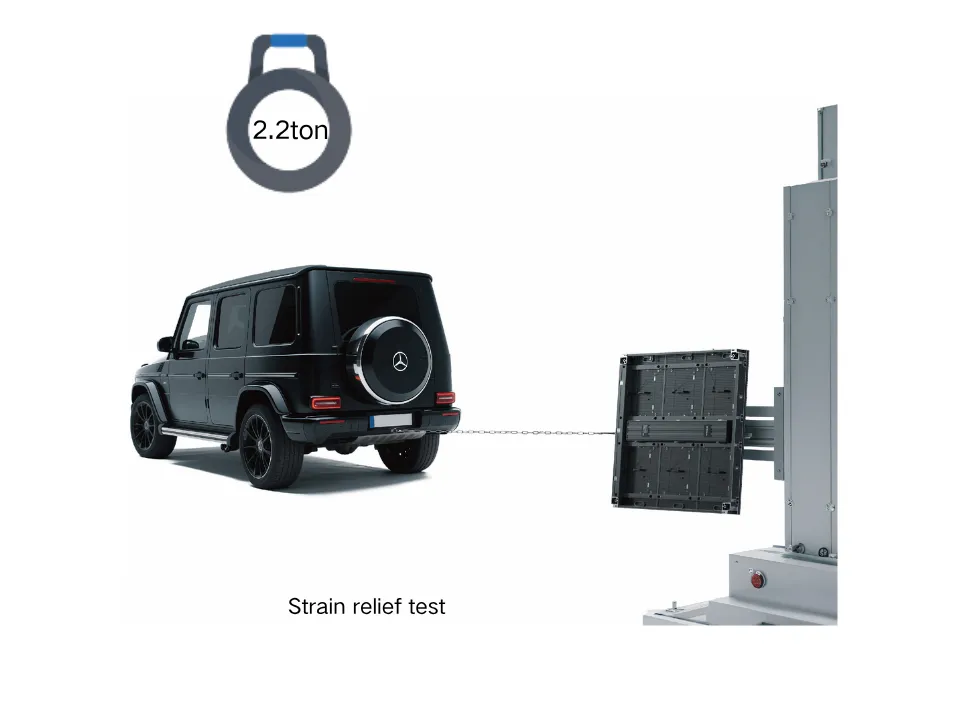

STRUCTURE26.39 kN

Maximum tensile load

Use as a cabinet reference only. Suspension, anchors and supporting steel still require project-specific calculations.

THERMAL−20 to +60°C

Operating range

Solar gain, rear ventilation, wall clearance and recessed conditions must be reviewed for hot-climate approval.

POWER630 / 230 W

Max / average per cabinet

Distribution design must use cabinet quantity, simultaneous load, cable distance and local electrical requirements.

DOCUMENTATIONCE / FCC / ETL

Compliance package

Verify current certificates and exact model coverage before tender submission or local authority approval.

Site Typology

Three outdoor contexts. Three different design priorities.

The venue name is not enough. RK Pro selection should start with viewing distance, screen orientation, weather exposure, structure and service access.

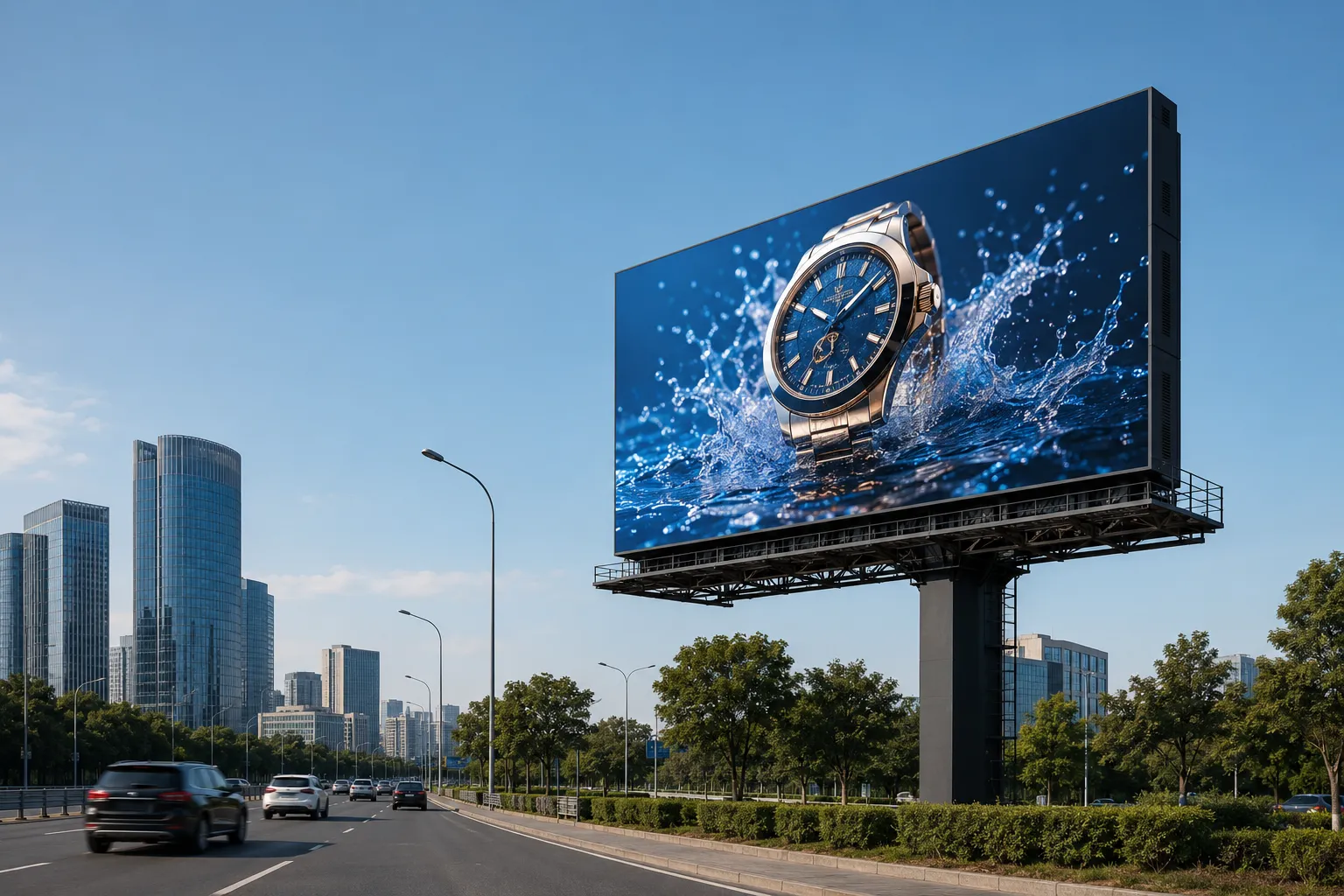

RK Pro outdoor fixed LED billboard installed beside a modern urban roadway for DOOH advertising — SITE 01 / DOOH

Roadside Billboards

P10 suits longer viewing distances and large screen areas. P6.67 supports closer approaches and smaller text.

Priority: distance + daylight

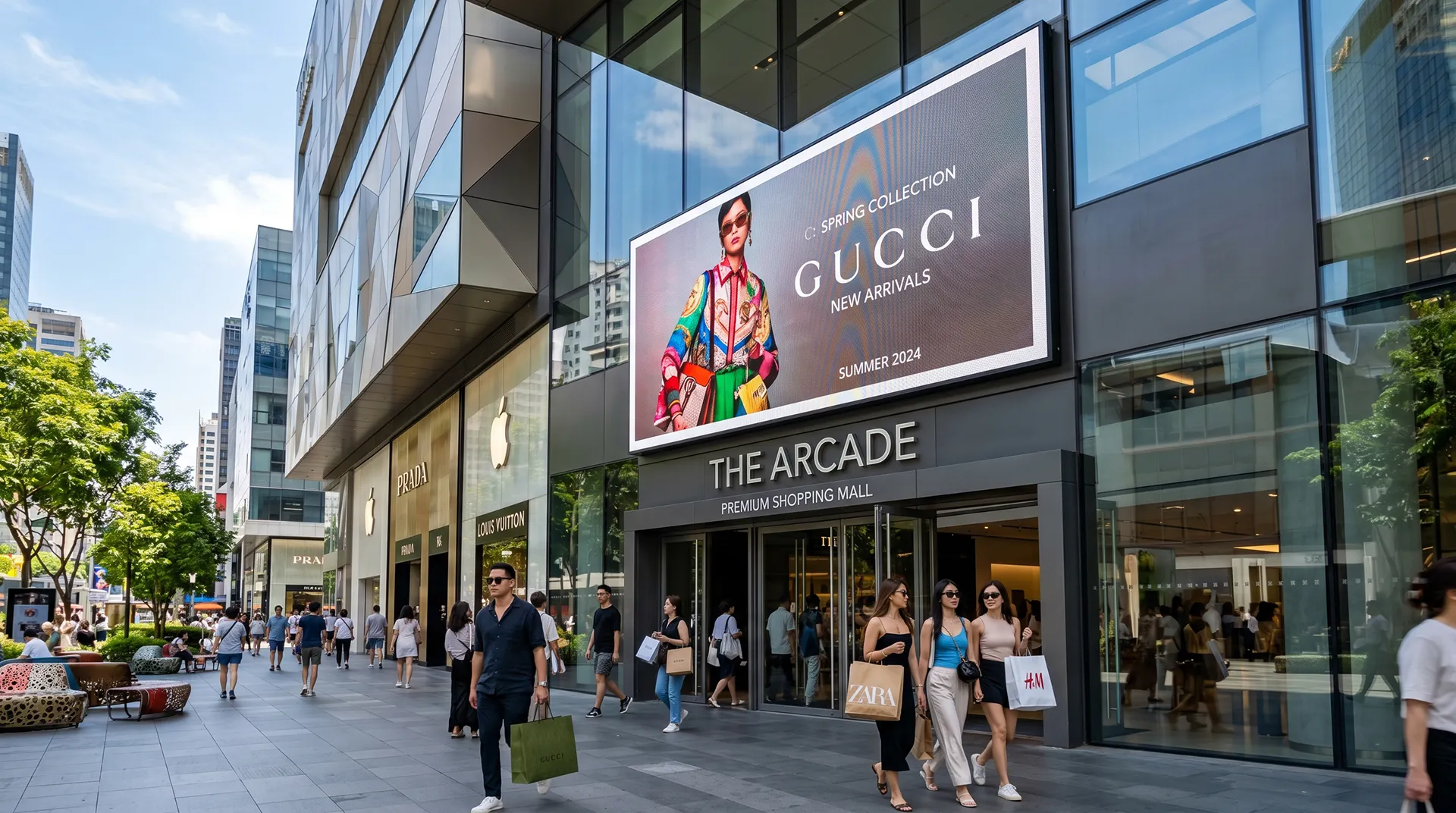

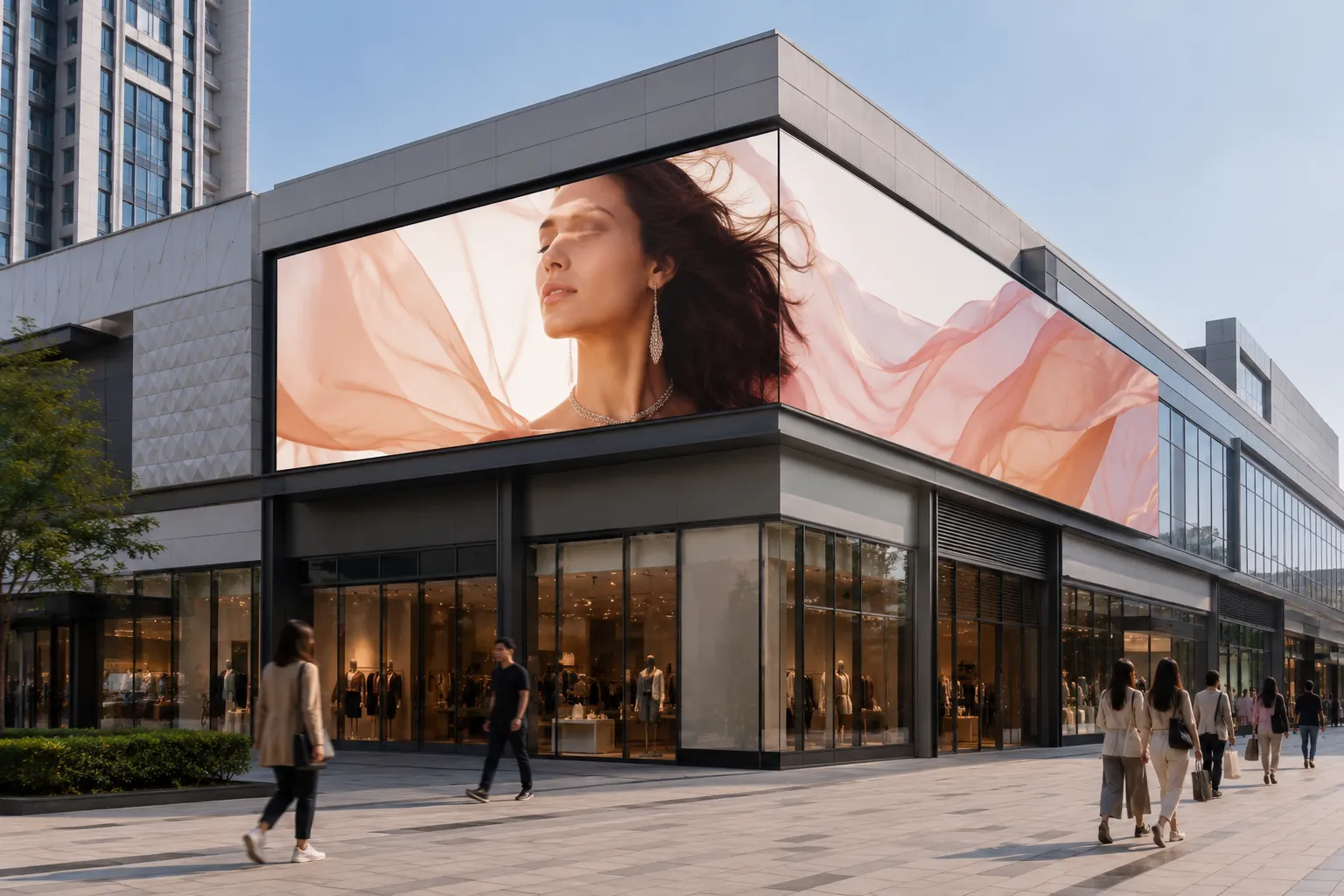

RK Pro outdoor fixed LED display integrated into a modern commercial building facade — SITE 02 / FAÇADE

Commercial Façades

Front service and 45° corner options help coordinate the display with cladding, architectural lines and limited rear access.

Priority: integration + service

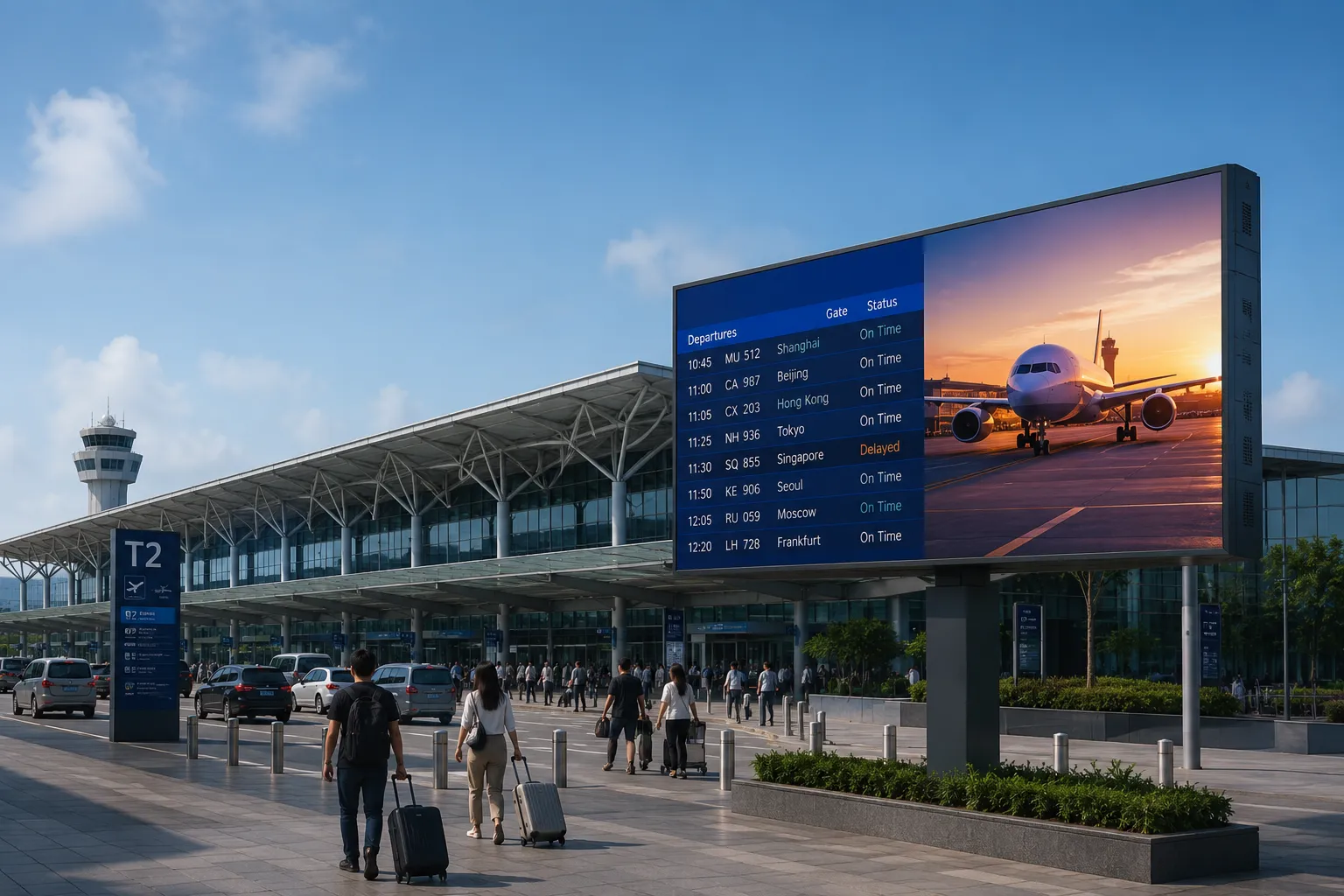

Transportation

7000 cd/m² and 7680 Hz support daylight information, advertising and camera-recorded content in public environments.

Priority: readability + uptime

Cabinet System

Cabinet Dimensions & Installation Options

P6.67 and P10 share a 960×960 mm face size and 27 kg cabinet weight. Model depth, mounting method, service direction and structural tolerance must be coordinated together before cabinet mapping and steelwork are finalized.

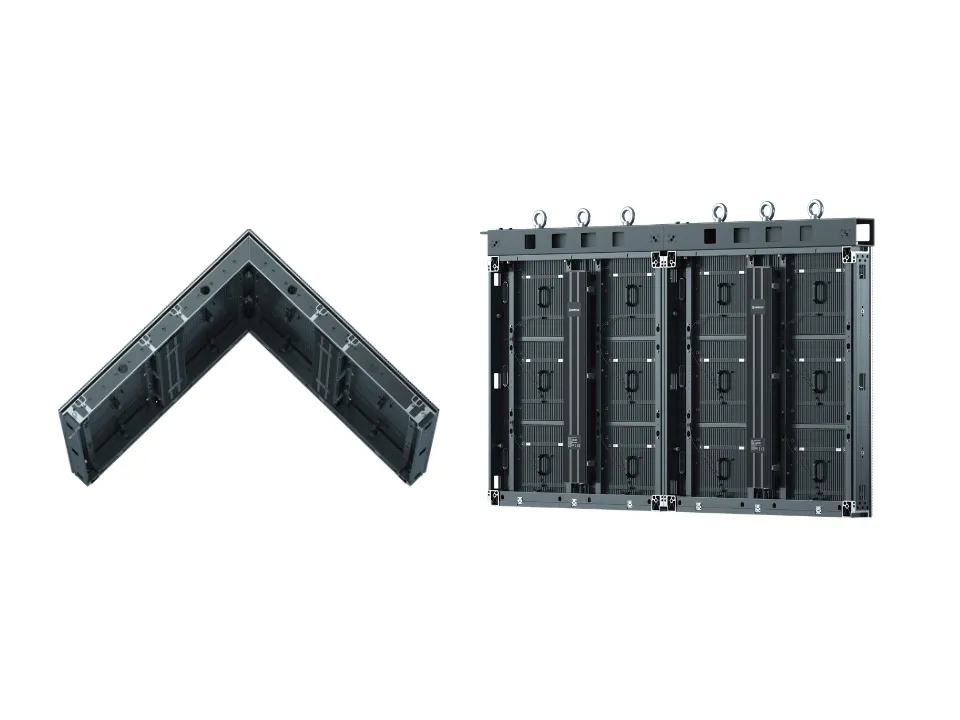

RK Pro wall-mounted hanging and 45-degree corner LED display installation methods — Cabinet installation methods, including wall mounting, suspended installation and 45° corner configurations.

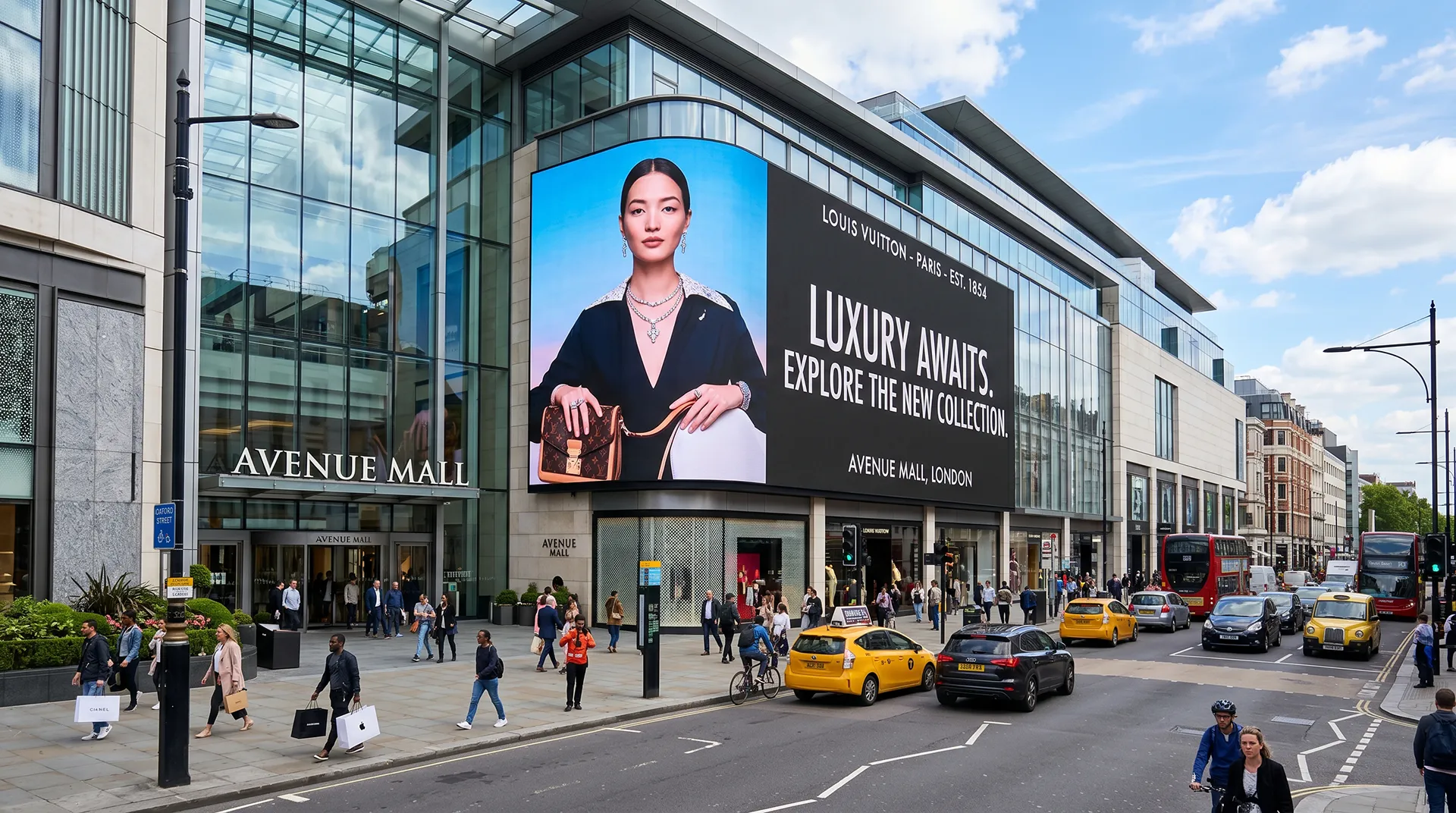

Outdoor LED facade installation examples with wall hanging and corner configurations — Typical facade, hanging and corner layouts for project planning and structural coordination.

ItemP6.67P10

Width × Height960 × 960 mm960 × 960 mm

Depth91.5 mm93.4 mm

Weight27 kg27 kg

Module480 × 320 mm480 × 320 mm

Wall-Mounted

Coordinate front service openings, cabinet leveling and facade drainage with the supporting steelwork.

Suspended

Use approved hanging hardware and complete structural calculations for the full display, not only one cabinet.

45° Corner

Design the structural corner, module alignment and content mapping as one coordinated interface.

Service Direction

Confirm front or rear access before fixing the structure, cladding and technician access route.

Installation limit: the datasheet's 12 m hanging reference applies only to approved Uniview hanging accessories and an indoor hanging condition with safety factor 8. Outdoor suspension requires separate engineering confirmation.

Core Specifications

RK Pro P6.67 & P10 Parameter Comparison

Swipe horizontally to compare models.

Parameter	RK Pro P6.67	RK Pro P10
Pixel Pitch	6.67 mm	10 mm
Brightness	7000 cd/m²	7000 cd/m²
Refresh Rate	7680 Hz	7680 Hz
Cabinet Size	960 × 960 × 91.5 mm	960 × 960 × 93.4 mm
Power Consumption (Max / Avg)	630 / 230 W per cabinet	630 / 230 W per cabinet
Protection / Service	IP67 front / IP65 rear; front & rear service	IP67 front / IP65 rear; front & rear service

Pre-Bid Checklist

Six inputs before cabinet quantity means anything.

A useful quotation begins with site data. These inputs reduce revisions to cabinet mapping, native resolution, structure, power distribution and service access.

Screen Geometry

Active width, height, aspect ratio, corner conditions and non-rectangular areas.

Viewing Conditions

Nearest distance, normal approach, installation height and required text size.

Environment

City, temperature, direct sun, wind, rain, dust and salt-air exposure.

Structure

Wall, pole, rooftop or hanging method plus steelwork drawings and tolerances.

Power & Signal

Voltage, distribution location, cable routes, control distance and redundancy requirements.

Maintenance

Front or rear service direction, technician access, spare parts and handover requirements.

Buyer FAQ

Outdoor LED Billboard Questions Buyers Ask First

Six high-intent questions covering brightness, pixel pitch, project cost, IP protection, front service and hot-climate operation.

01Is 7000 nits enough for an outdoor LED billboard in direct sunlight?

7000 cd/m² is suitable for many daylight-facing outdoor billboard and DOOH installations. Final brightness still depends on screen orientation, direct-sun exposure, ambient light, viewing distance and local luminance limits. Confirm day/night brightness presets before ordering.

02Should I choose P6.67 or P10 for an outdoor LED billboard?

Choose P6.67 when viewers can approach closer and finer detail or smaller text is required; choose P10 when normal viewing begins farther away and long-distance readability matters more than close-range detail. Confirm the nearest viewing distance, active dimensions and representative content before final selection.

03How much does an outdoor LED billboard or façade screen cost?

There is no reliable single price because total project cost changes with screen area, pixel pitch, steel structure, control system, power distribution, installation height, freight and service requirements. For an accurate RK Pro quotation, provide screen dimensions, viewing distance, project country, mounting method, service direction and site drawings.

04What IP rating does RK Pro provide for outdoor rain and dust?

RK Pro is specified at IP67 on the front and IP65 on the rear. Installed-system protection also depends on cable glands, power-box sealing, drainage, mounting orientation and workmanship, so the complete enclosure strategy must be reviewed for the actual site.

05Can RK Pro be serviced from the front when rear access is limited?

Yes. RK Pro supports front and rear service access. Front service can reduce the need for a full rear corridor, but the design still requires safe technician access, electrical isolation and enough clearance to remove modules and service components.

06Can RK Pro operate in hot climates up to 60°C?

The datasheet specifies an operating range up to +60°C. Site approval must still consider solar loading, rear ventilation, wall clearance, full-white content load and recessed façade conditions. Peak ambient temperature and airflow should be reviewed before final engineering approval.
