Indoor Rental / Touring LED System

AS Series Built for the Next Show.

A 500 × 500 mm indoor rental platform for concerts, corporate events, exhibitions and broadcast production. Five pixel pitches from 1.953 to 3.906 mm combine 7,680 Hz refresh, front/rear service and optional 0° / ±3° / ±6° curved installation.

Request a Rental Configuration Compare Models

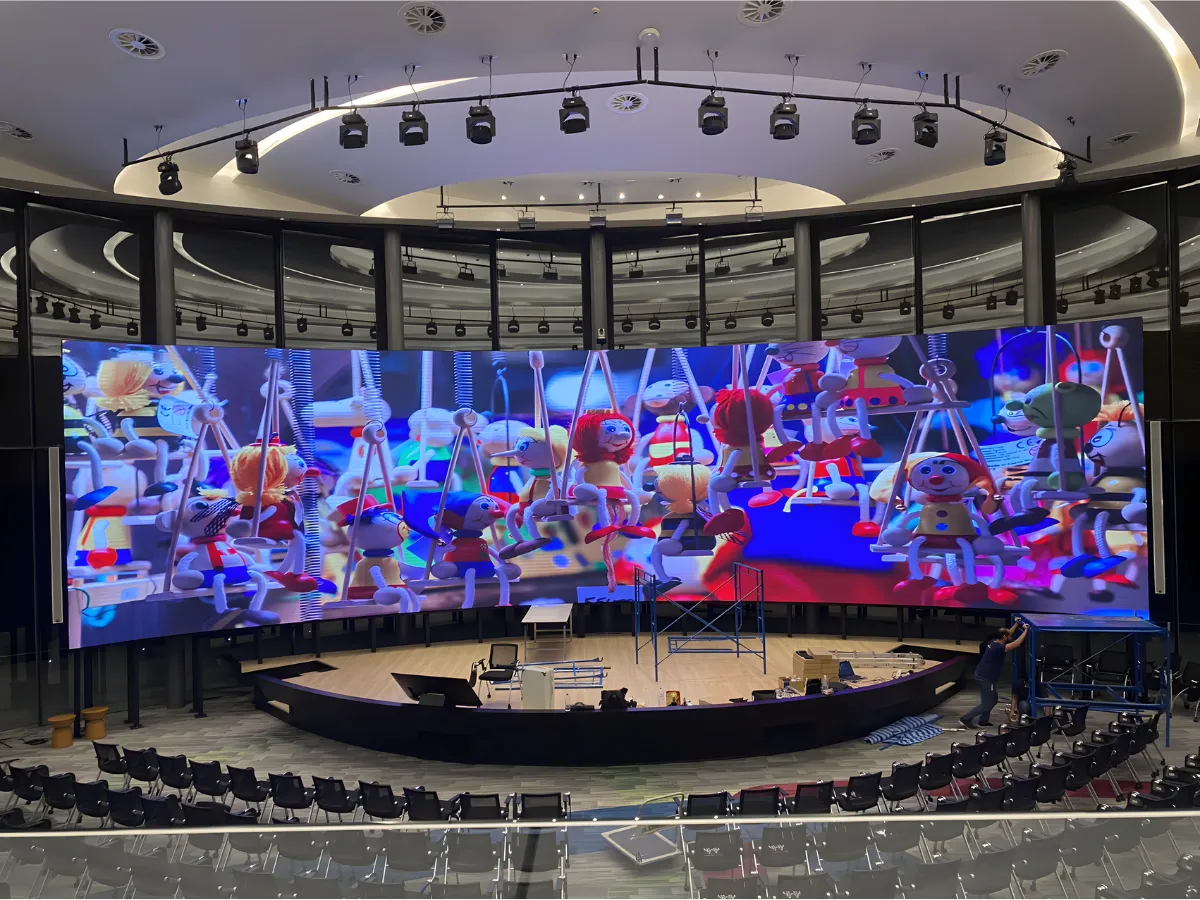

AS Series indoor rental LED display installed for a stage event — SHOW REFERENCE / INDOOR STAGE

Pixel pitch options

700–1000

cd/m² brightness

7.6 kg

Per cabinet

80 mm

Cabinet depth

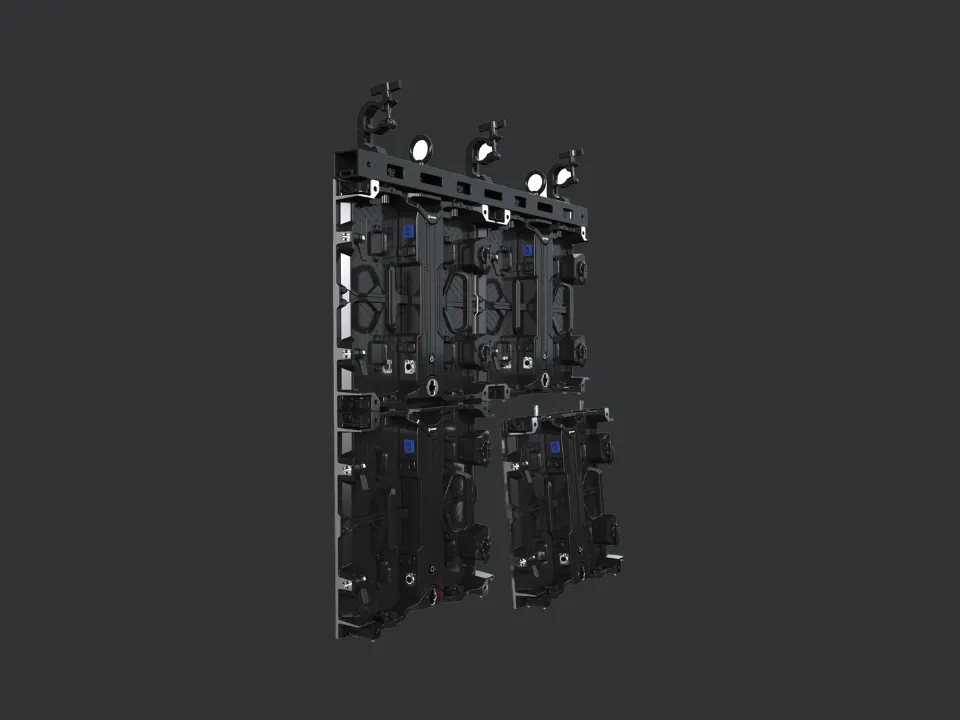

AS Series indoor rental LED cabinets during stage installation — RENTAL INVENTORY / 500 × 500 PLATFORM

Rental Inventory Logic

One cabinet footprint across five pixel pitches.

AS1.95 (COT), AS2.5, AS2.6, AS2.9 and AS3.9 share the same 500 × 500 × 80 mm cabinet and 250 × 250 mm module footprint. That common geometry simplifies flight-case planning, screen mapping and repeated build documentation across different show requirements.

Standard Footprint

500 × 500 mm simplifies repeated rigging layouts and cabinet-count calculations.

Model Flexibility

Five pixel pitches cover presentation, IMAG, stage graphics and longer indoor viewing distances.

Repeatable Rebuilds

Consistent cabinet geometry helps rental teams reproduce mappings, cases and service procedures.

Show Control System

Three moments determine whether a rental wall works on show day.

Camera output, field service and curved geometry are not isolated features. They are three production moments that must work repeatedly under event schedules.

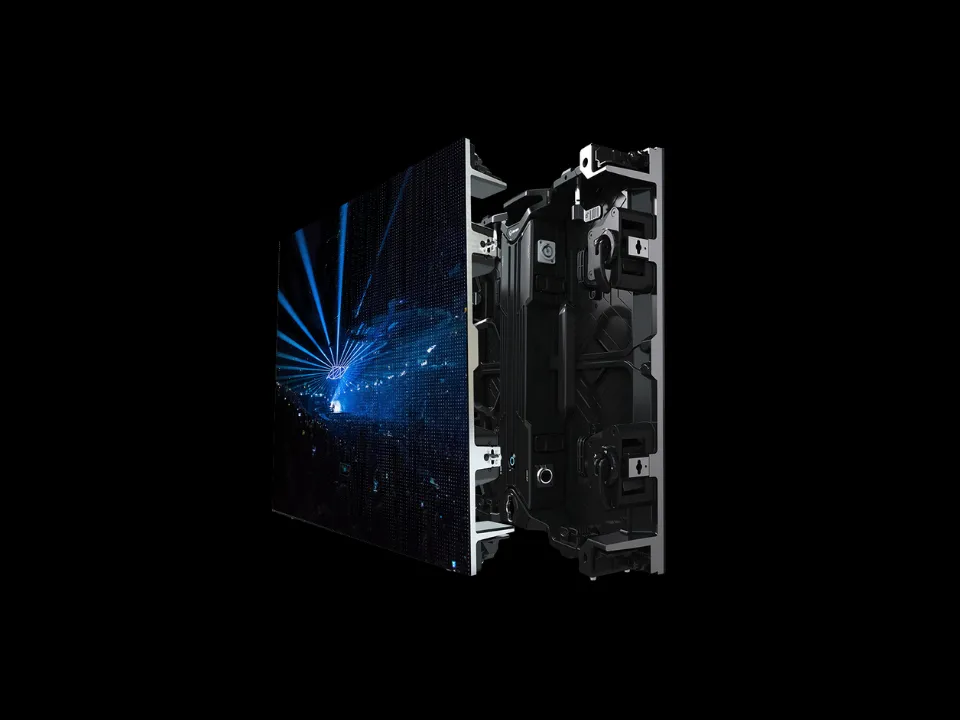

AS Series rental LED display showing detailed camera-facing stage content — CUE 01 / CAMERA

Camera Cue

7,680 Hz is the starting point—not the final camera test.

All five models are specified at 7,680 Hz with 15-bit grayscale. Final camera performance still depends on processor output, receiving-card configuration, calibration, operating brightness, frame rate and shutter settings.

Show checkplanned camera · shutter · frame rate · brightness · real content

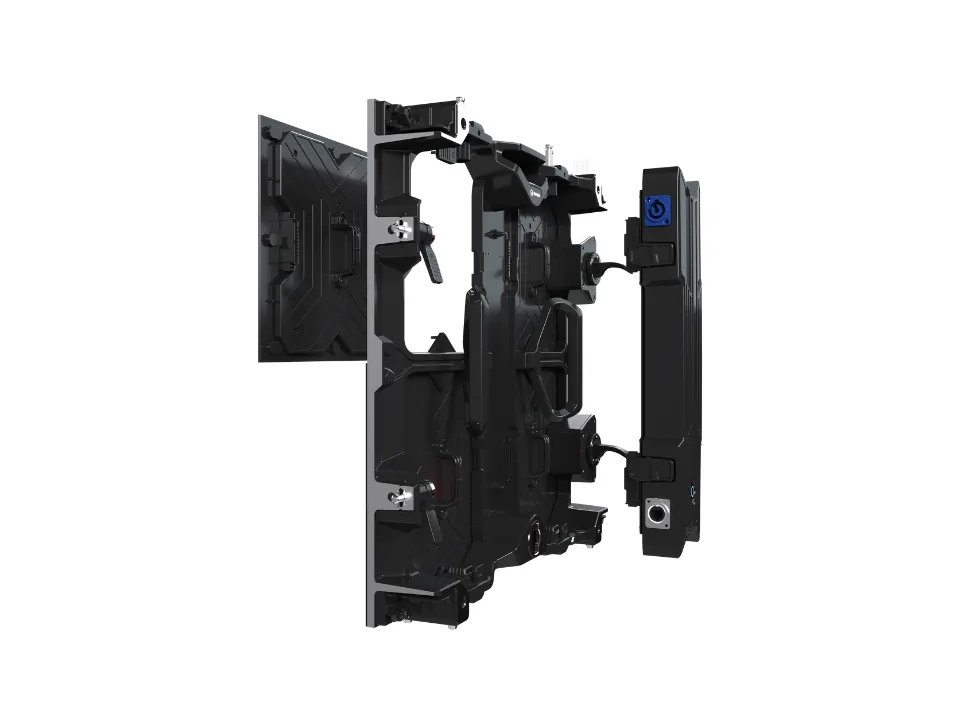

AS Series modular cabinet components for front and rear maintenance — CUE 02 / SERVICE

Front + rear maintenance

Module, frame and power-box serviceability supports quick component replacement during load-in, rehearsal and turnaround.

Priority: reduce changeover time

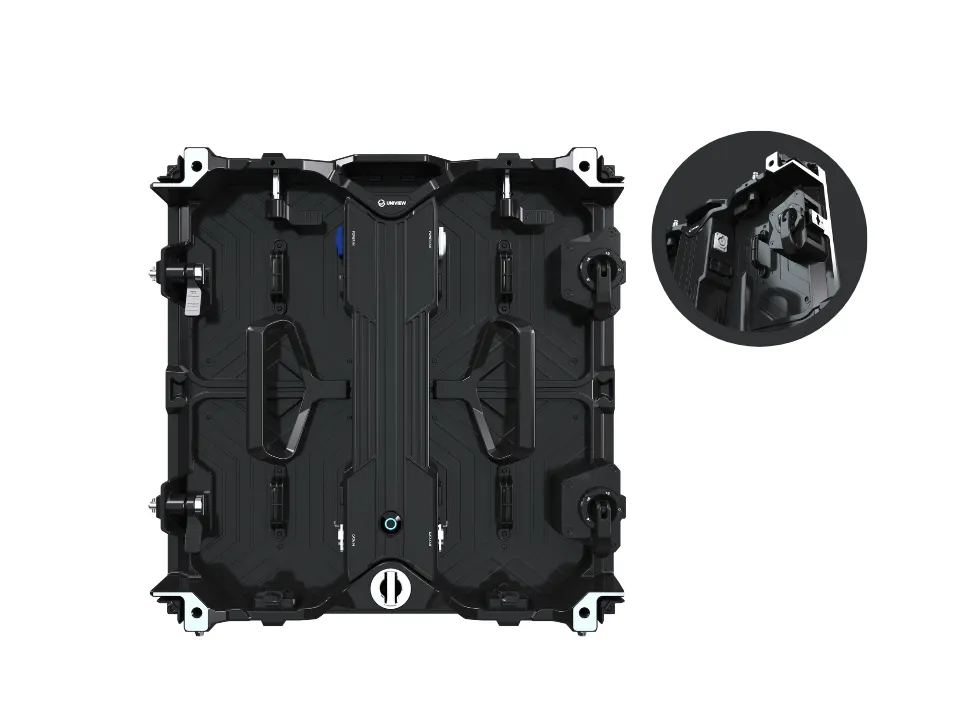

AS Series curved lock for concave and convex LED wall assembly — CUE 03 / GEOMETRY

0° / ±3° / ±6° curved locks

Concave and convex layouts depend on lock direction, cabinet count, support geometry and Z-axis seam alignment.

Priority: confirm radius before pack-out

Production Modes

The cabinet stays the same. The production priorities change.

Each rental environment asks for a different balance of viewing distance, camera performance, setup speed and geometry.

MODE 01

Concerts & Touring

Repeated hanging, rapid service and consistent rebuilds between venues.

speed / rigging / recovery

MODE 02

Corporate Events

Presentation text, executive camera shots and predictable native resolution.

detail / camera / reliability

MODE 03

Exhibitions

Reusable inventory, modular booth dimensions and front-access flexibility.

modularity / access / reuse

MODE 04

Broadcast & XR

Refresh, grayscale, processor setup and camera testing become one workflow.

sync / calibration / image quality

Show Reference

See the screen inside a real conference production.

Rigging Unit

One 500 × 500 mm cabinet becomes the repeatable building block.

Across all five pixel pitches, the standard cabinet measures 500 × 500 × 80 mm and weighs 7.6 kg. That shared mechanical format is the basis for inventory planning, case packing and screen mapping.

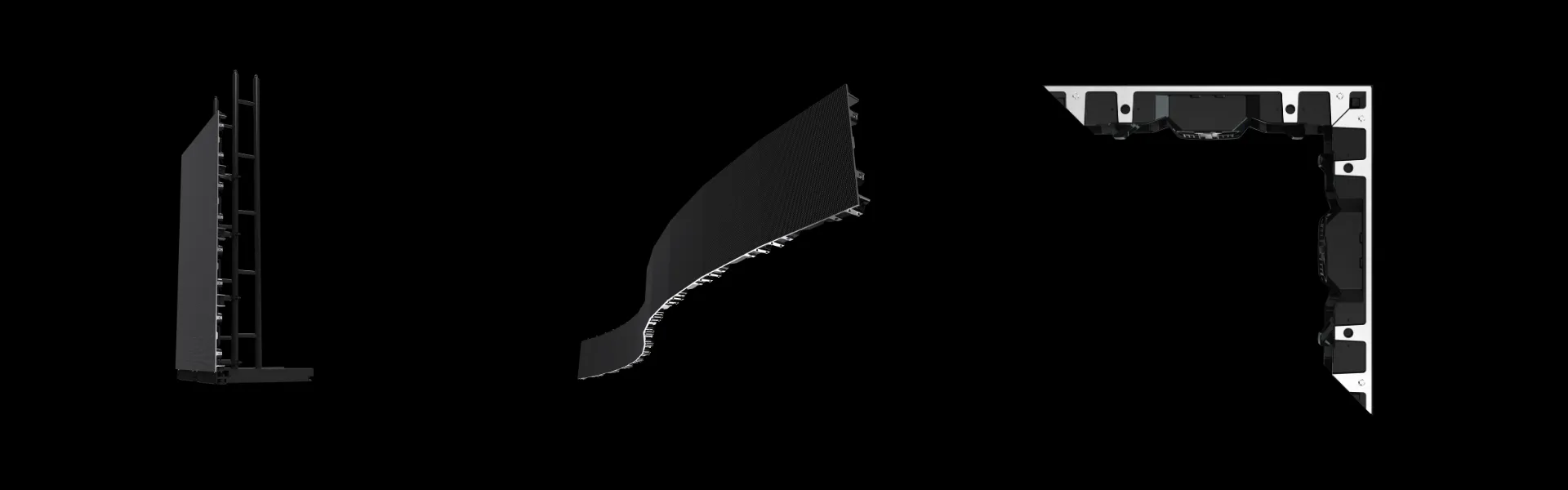

AS Series cabinet arrangement for flat curved and corner rental LED screens — RIGGING REFERENCE / FLAT + CURVED

Cabinet500 × 500 × 80 mm

Module250 × 250 mm

Weight7.6 kg

InstallHang / Stack

ServiceFront / Rear

Curve0° / ±3° / ±6°

Core Specifications

Compare AS1.95 to AS3.9

Six core rental parameters are shown for fast model comparison: pixel pitch, brightness, refresh rate, cabinet size, power consumption and installation/service method.

Swipe horizontally to compare models.

Parameter	AS1.95 (COT)	AS2.5	AS2.6	AS2.9	AS3.9
Pixel Pitch	1.953 mm	2.500 mm	2.604 mm	2.976 mm	3.906 mm
Brightness	700 cd/m²	900 cd/m²	900 cd/m²	1000 cd/m²	900 cd/m²
Refresh Rate	7680 Hz	7680 Hz	7680 Hz	7680 Hz	7680 Hz
Cabinet Size	500 × 500 × 80 mm	500 × 500 × 80 mm	500 × 500 × 80 mm	500 × 500 × 80 mm	500 × 500 × 80 mm
Power Consumption (Max / Avg)	576 / 192 W/m²	576 / 192 W/m²	576 / 192 W/m²	560 / 190 W/m²	560 / 190 W/m²
Installation / Service	Hang or stack · Front & rear	Hang or stack · Front & rear	Hang or stack · Front & rear	Hang or stack · Front & rear	Hang or stack · Front & rear

Turnaround Checklist

Four records make the next rebuild faster and more consistent.

Rental value is not only setup speed. It is the ability to reproduce the same system after transport, servicing and venue changes.

Screen Map

Active dimensions, cabinet count, native resolution and content canvas.

Power & Signal

Circuit plan, controller outputs, receiving-card map and cable routes.

Rigging Geometry

Hang or stack method, curve angles, leveling and support tolerances.

Calibration Archive

Processor settings, receiving-card files, calibration data and labeled spare parts.

Buyer FAQ

Indoor Rental LED Display Questions Buyers Ask First

Six common selection and production questions covering pixel pitch, camera performance, cost, curve geometry, maintenance and indoor-use limits.

01Which AS Series pixel pitch should I choose for a 2.5–4 m viewing distance?

Use AS1.95 or AS2.5 for the closest viewing, AS2.6 from about 2.6 m, AS2.9 from around 3 m and AS3.9 from around 4 m. Final selection should also consider screen size, small text, IMAG framing and native resolution.

02Is 7680 Hz refresh rate suitable for live cameras and broadcast events?

Yes. All five models are specified at 7680 Hz with 15-bit grayscale, providing a strong starting point for IMAG, corporate broadcast and camera-facing production. Final performance still depends on processor output, receiving-card setup, shutter speed, frame rate, brightness and calibration.

03How much does an indoor rental LED screen cost?

There is no reliable single price because rental-system cost changes with pixel pitch, cabinet quantity, flight cases, rigging hardware, processor scope, spare-parts ratio and power distribution. For an accurate quotation, provide active dimensions, viewing distance, installation method, camera requirements and project country.

04Can AS Series build ±3° or ±6° concave and convex LED walls?

Yes. Optional 0°, ±3° and ±6° curved locks support flat, concave and convex rental walls. The finished radius depends on cabinet count, lock direction and support geometry, so specify the required radius or total screen angle before ordering.

05Does AS Series support front and rear maintenance for hanging and stacking?

Yes. All five models support front and rear service and can be installed by hanging or stacking. Actual access still depends on the rigging or ground-support structure, rear clearance and component-removal path.

06Can an IP30 AS Series screen be used for outdoor concerts?

No. AS Series is an indoor product rated IP30 front and rear. It should not be exposed to rain, water spray or uncontrolled condensation. Use an outdoor-rated rental product whenever weather exposure is possible.
