Precision Outdoor LED Display

Falcon Series Outdoor Display Platform

Four outdoor pixel pitches from 1.953 to 3.906 mm combine close-range resolution, 3,000–4,500-nit model-specific brightness, 7,680 Hz refresh and front/rear service. Select the model from viewing distance, solar exposure, active dimensions and cabinet format.

Request a Project Quote Compare Models

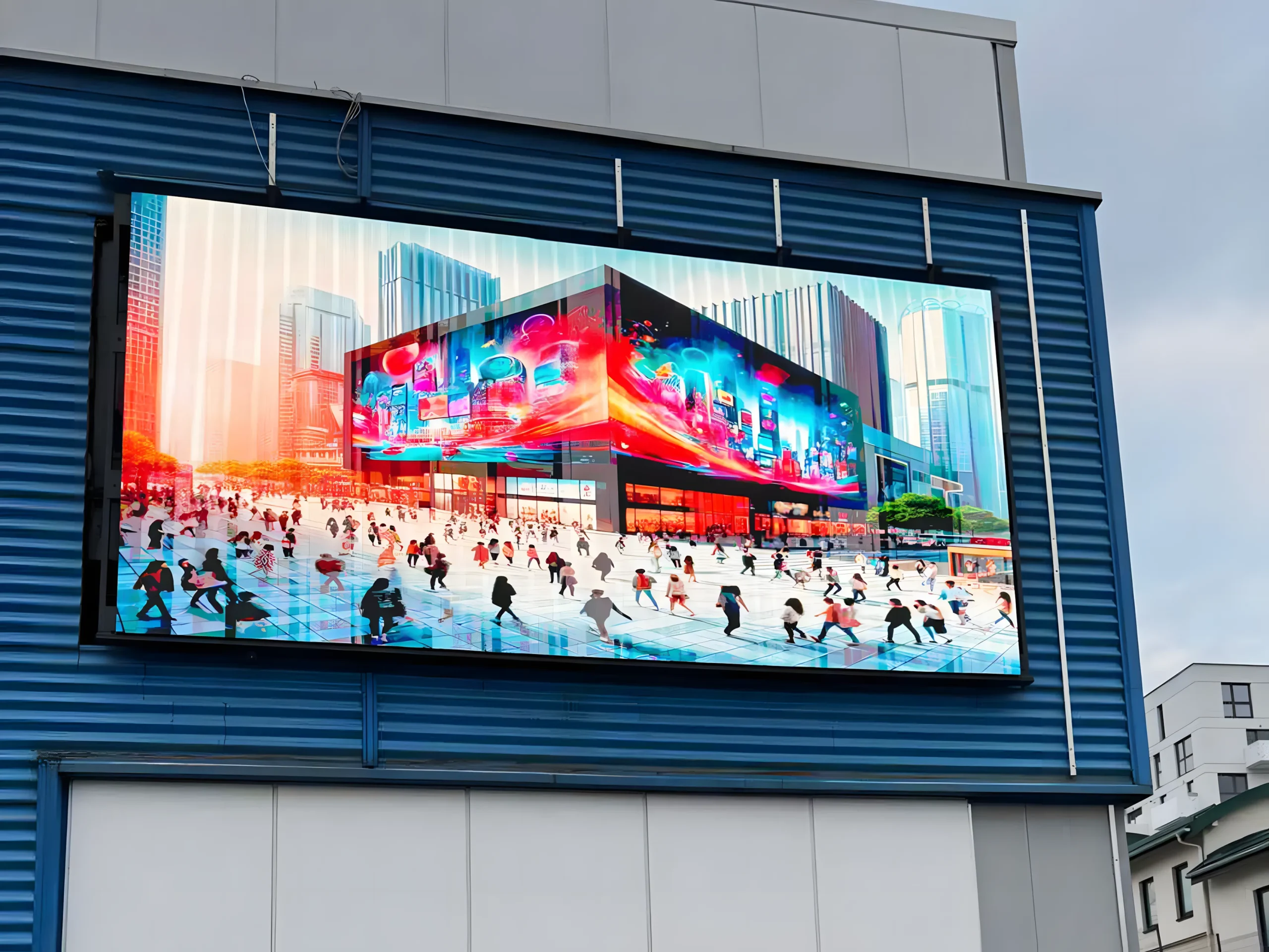

Falcon Series outdoor fixed LED display installed on a commercial building façade — OUTDOOR REFERENCE / COMMERCIAL FAÇADE

≤1 mmScreen flatness

−20 to +60°COperating range

610 / 205Max / avg W/m²

94.7 mmCommon cabinet depth

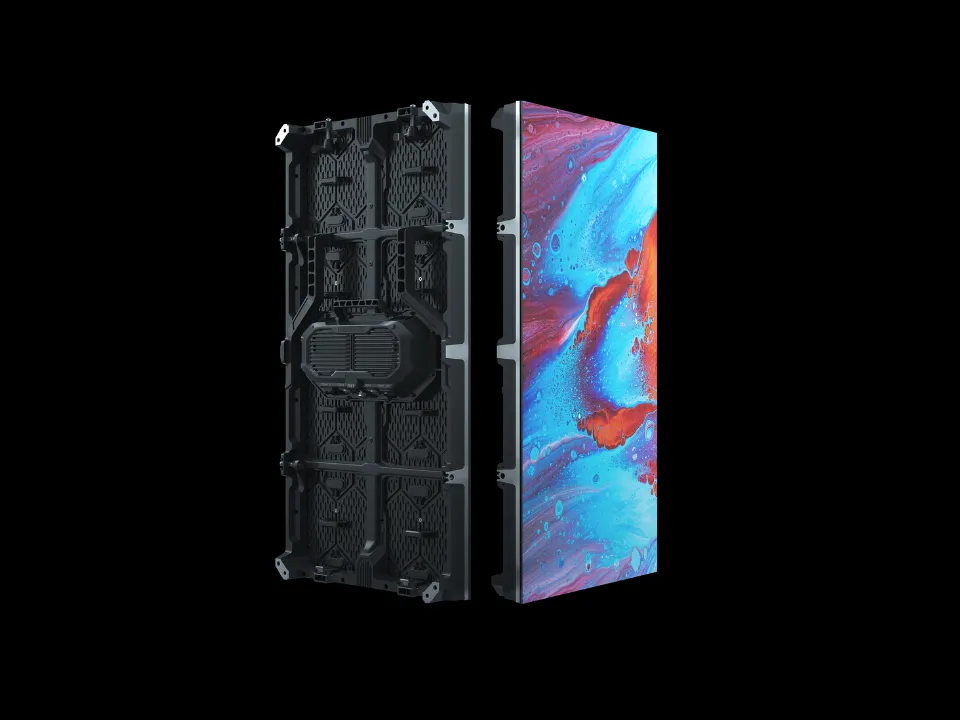

Falcon Series outdoor LED cabinet and module construction — CABINET / MODULE REFERENCE

Selection Logic

Choose the model from three project inputs.

Falcon is not a single-brightness, single-format platform. The four models split into two brightness levels and two cabinet formats, so model selection should begin with the real viewing and exposure conditions.

Viewing Distance

Use the nearest regular viewer position and content detail to select pixel pitch.

Solar Exposure

3,000-nit models suit more controlled or shaded conditions; 4,500-nit models provide more daylight margin.

Cabinet Format

FA1.95 / FA2.6 / FA2.97 use 500×500 mm cabinets; FA3.91 uses 500×1000 mm.

Calibration & Environmental Control

Outdoor quality is controlled before the content goes live.

Flatness, temperature, enclosure protection and mounting geometry are not separate marketing features. They are four conditions that determine whether the finished screen remains visually consistent and serviceable.

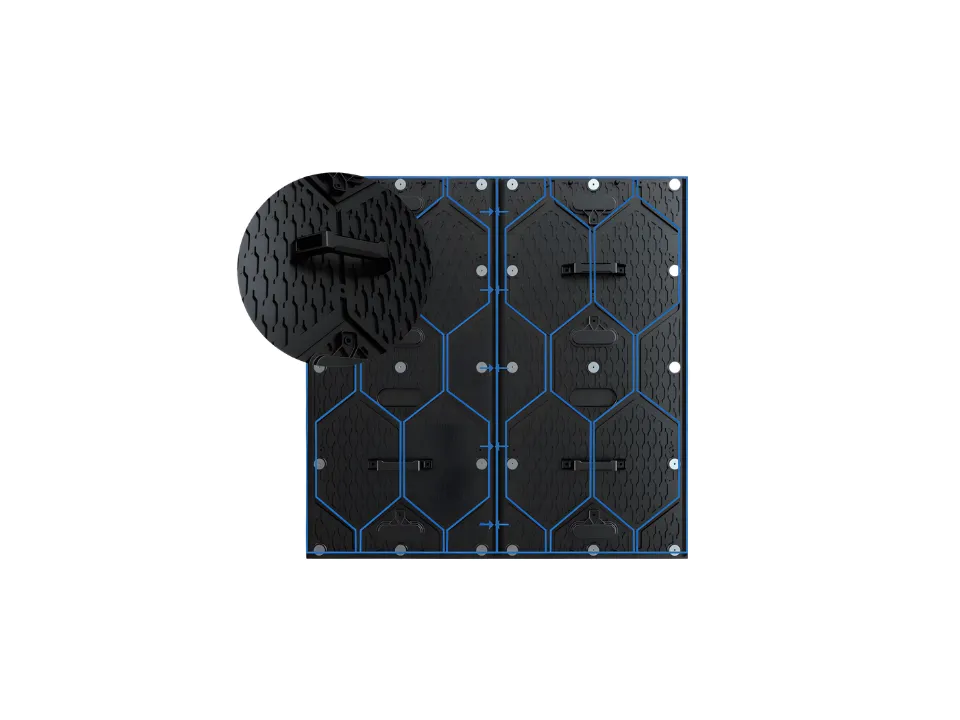

Falcon Series outdoor LED module structural detail for alignment control — CONTROL 01 / ALIGNMENT

Screen Flatness

≤1 mm is a commissioning target, not only a factory number.

Finished-screen flatness and seam consistency also depend on steel tolerance, cabinet leveling, module seating and calibration. Inspect horizontal and vertical seams with bright, dark and low-gray test patterns.

Commissioning checkstructure · cabinet leveling · module seating · low-gray uniformity

Falcon Series outdoor LED cabinet structural stability and thermal design detail — CONTROL 02 / THERMAL

−20°C to +60°C operating range

Use the site’s worst-case solar load, rear ventilation, cabinet spacing and power configuration to verify heat rejection and any required derating.

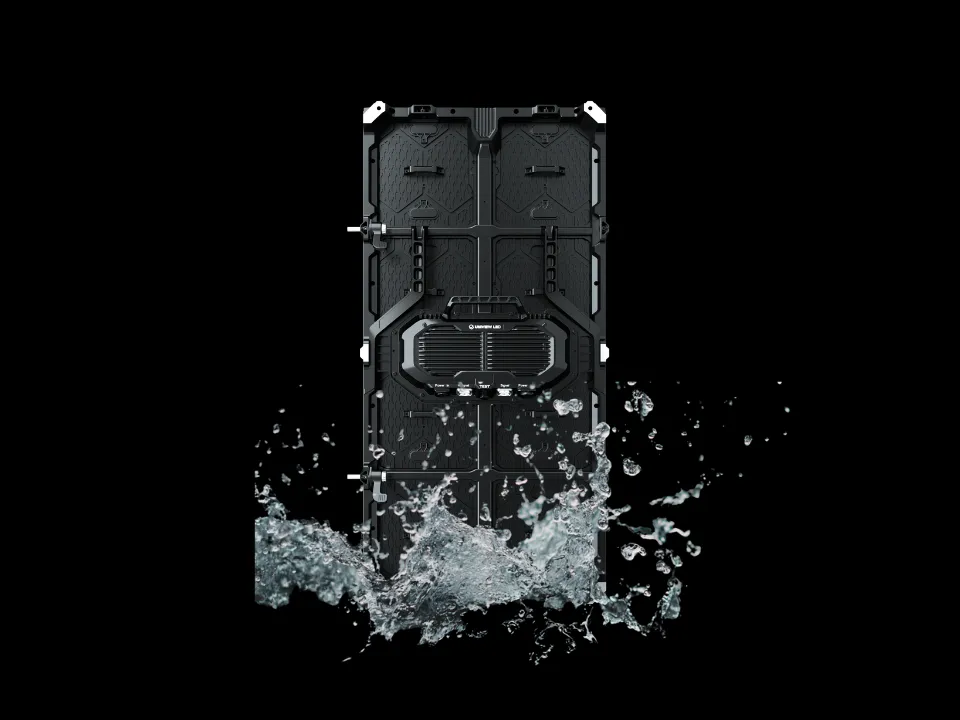

Falcon Series sealed outdoor LED power box and weather-protection structure — CONTROL 03 / ENCLOSURE

IP65 front / IP54 rear

Preserve the specified protection through cable entries, drainage, ventilation and service procedures. Exposed rear areas require separate weather review.

Installation Geometry

Fixed or hanging installation is part of the cabinet map.

Confirm cabinet orientation, lifting points, service access, structural loads, power and signal routes and approved drawings before production.

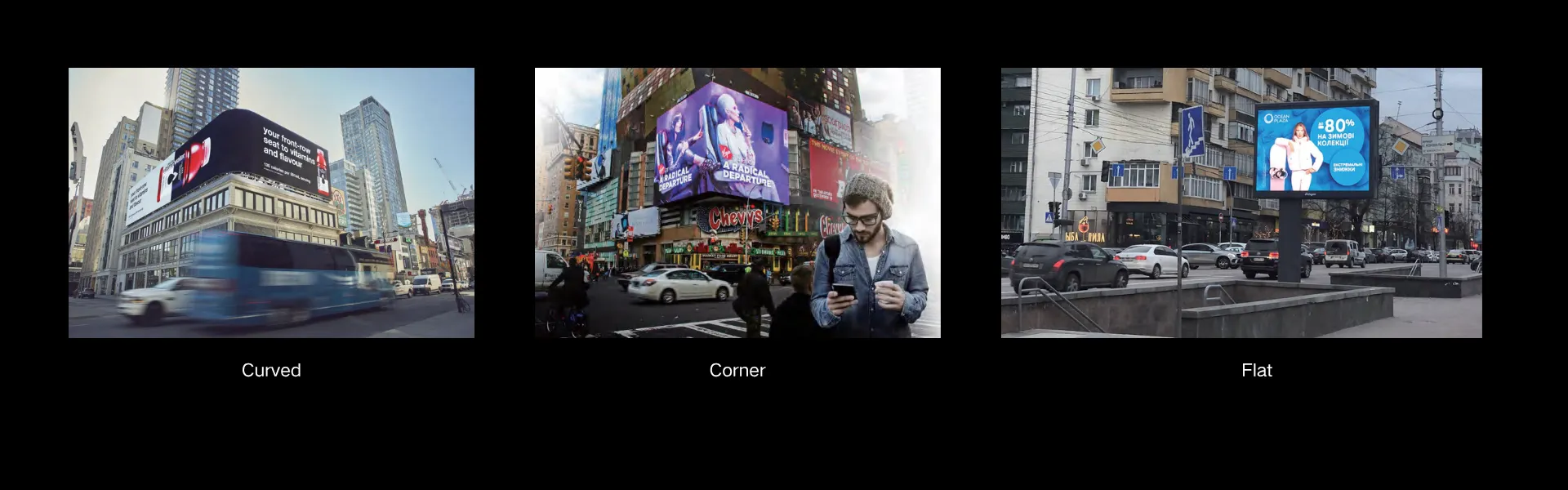

Falcon Series fixed and hanging outdoor LED installation configurations — CONTROL 04 / INSTALLATION

Exposure Matrix

The same display behaves differently in four outdoor contexts.

Select pixel pitch, brightness and service strategy from the real site rather than from the venue label alone.

01 / DOOH

Roadside Billboards

Long operating hours, direct daylight and fast viewing demand strong luminance control and simple service access.

Priority: daylight + uptime

02 / FAÇADE

Building Exteriors

Cabinet depth, flatness, drainage and structural tolerance directly affect architectural integration.

Priority: alignment + integration

03 / RETAIL

Commercial Plazas

Closer pedestrian viewing and bright surroundings increase the importance of pixel pitch and glare-aware brightness planning.

Priority: detail + exposure

04 / TRANSIT

Transportation Hubs

Long operating schedules require readable content, planned maintenance windows and robust power and data routes.

Priority: readability + service

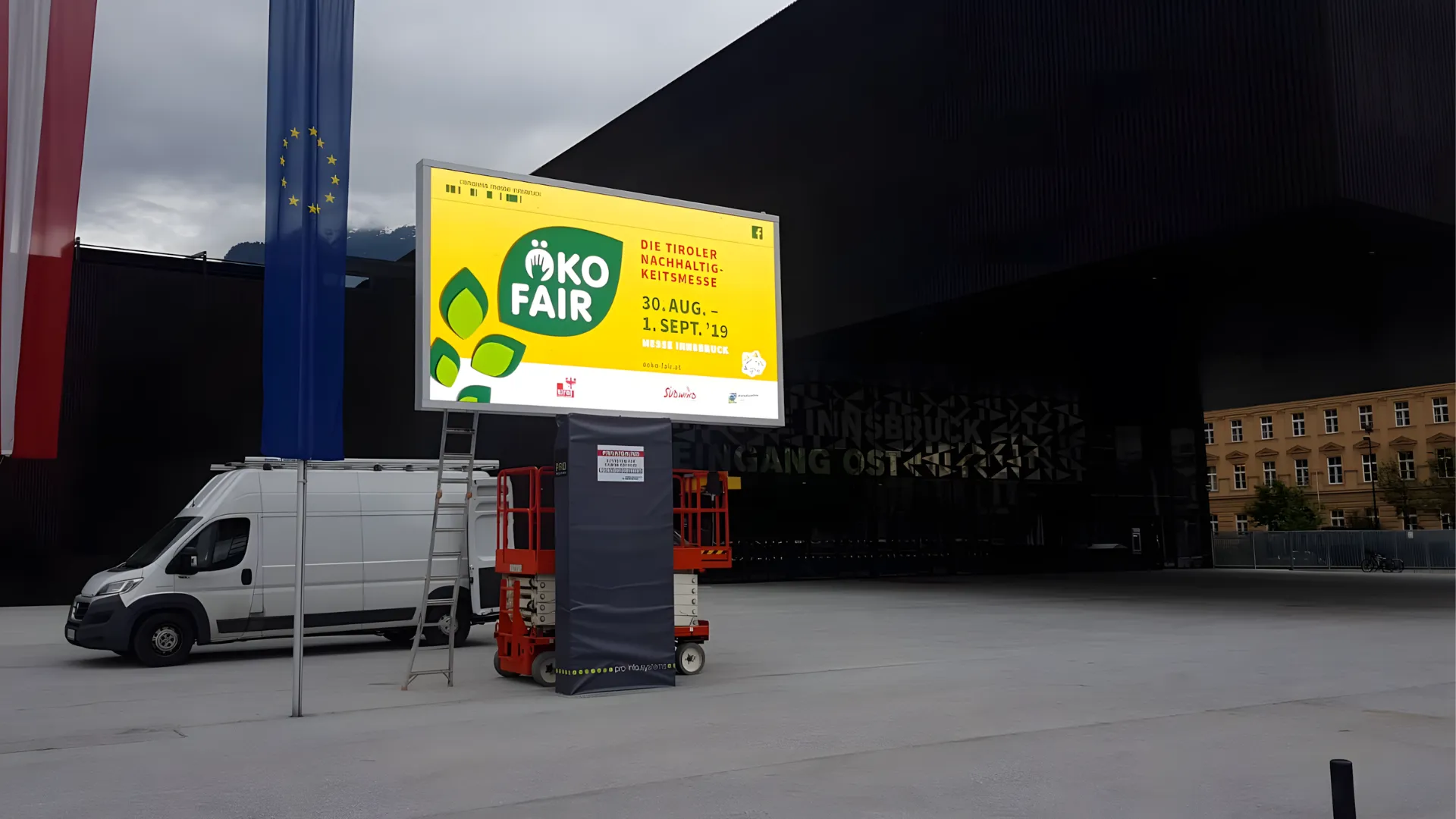

Field Reference

See Falcon in a real outdoor commercial environment.

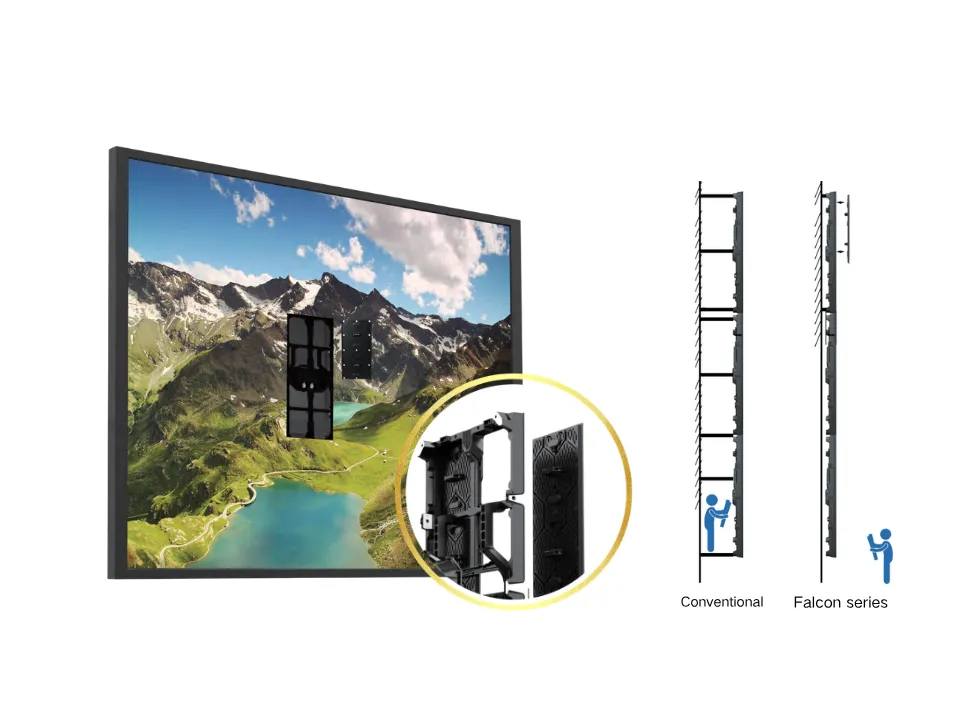

Falcon Series outdoor LED display cabinet dimension drawing

Cabinet Size & Service

Two Cabinet Formats for Project-Specific Layouts

Falcon Series uses two cabinet formats with a common 94.7 mm depth. The 500 × 500 mm format covers FA1.95, FA2.6 and FA2.97, while FA3.91 uses a 500 × 1,000 mm vertical cabinet.

500 × 500 mmFA1.95 / FA2.6 / FA2.97 · 94.7 mm depth · 10 kg

500 × 1,000 mmFA3.91 · 94.7 mm depth · 15 kg

Mixed-format limitation: mixed cabinet sizes or pixel pitches require confirmation of mechanical interfaces, pixel mapping, color calibration and structural alignment.

Core Specifications

Falcon Series Model Comparison

Six core outdoor parameters are shown for fast model comparison. Cabinet weight and native resolution remain available in the cabinet and project-planning content.

Parameter	FA1.95 (COT)	FA2.6 (COT)	FA2.97	FA3.91
Pixel Pitch	1.953 mm	2.604 mm	2.976 mm	3.906 mm
Brightness	3,000 nits	3,000 nits	4,500 nits	4,500 nits
Refresh Rate	7,680 Hz	7,680 Hz	7,680 Hz	7,680 Hz
Cabinet Size	500 × 500 × 94.7 mm	500 × 500 × 94.7 mm	500 × 500 × 94.7 mm	500 × 1,000 × 94.7 mm
Power Consumption (Max / Avg)	610 / 205 W/m²	610 / 205 W/m²	610 / 205 W/m²	610 / 205 W/m²
Protection / Service	IP65 front / IP54 rear · Front & rear	IP65 front / IP54 rear · Front & rear	IP65 front / IP54 rear · Front & rear	IP65 front / IP54 rear · Front & rear

Commissioning Gate

Four checks before the screen is ready for handover.

Falcon’s final visual quality depends on the system around the cabinet as much as the cabinet itself.

Mapping

Confirm active dimensions, cabinet count, native resolution and controller capacity.

Structure

Verify leveling tolerance, lifting method and front or rear service path.

Power & Signal

Check feeders, grounding, controller outputs, routes and required redundancy.

Calibration & Spares

Retain calibration data and define spare modules, power supplies and receiving cards.

Buyer FAQ

Falcon Outdoor LED Display Questions Buyers Ask First

Six practical questions covering pixel pitch, brightness, project cost, refresh rate, weather protection and front service.

01How do I choose between FA1.95, FA2.6, FA2.97 and FA3.91?

Use the closest regular viewing distance, active display dimensions, content detail and target resolution. The datasheets indicate approximately 2 m for FA1.95, 3 m for FA2.6 or FA2.97, and 4 m for FA3.91 as recommended minimum viewing distances.

02Is 3,000 or 4,500 nits enough for an outdoor LED display?

FA1.95 and FA2.6 are rated at 3,000 nits, while FA2.97 and FA3.91 are rated at 4,500 nits. Final suitability depends on screen orientation, direct-sun exposure, ambient light, local dimming limits and heat management.

03How much does a Falcon outdoor LED display cost?

There is no reliable single price because total project cost changes with pixel pitch, screen area, cabinet count, steel structure, control system, power distribution, installation, freight and service requirements. For an accurate quotation, provide the active dimensions, viewing distance, project country, mounting method and site drawings.

04Is 7,680 Hz refresh rate suitable for camera recording?

All four Falcon models are specified at 7,680 Hz, providing a strong starting point for camera-facing outdoor content. Final results also depend on scan configuration, shutter speed, frame rate, controller settings, operating brightness and calibration.

05What does IP65 front and IP54 rear mean for outdoor use?

Falcon is specified at IP65 on the front and IP54 on the rear. The completed installation must preserve these protection boundaries through cable entries, drainage, ventilation, seals and service procedures. Exposed rear areas require separate environmental review.

06Can Falcon Series be fully front serviced without a rear maintenance corridor?

Falcon supports both front and rear maintenance. Whether a rear corridor can be omitted depends on the mounting structure, module extraction path, cable routing, ventilation and power-box access. Define the service side before steelwork is finalized.
