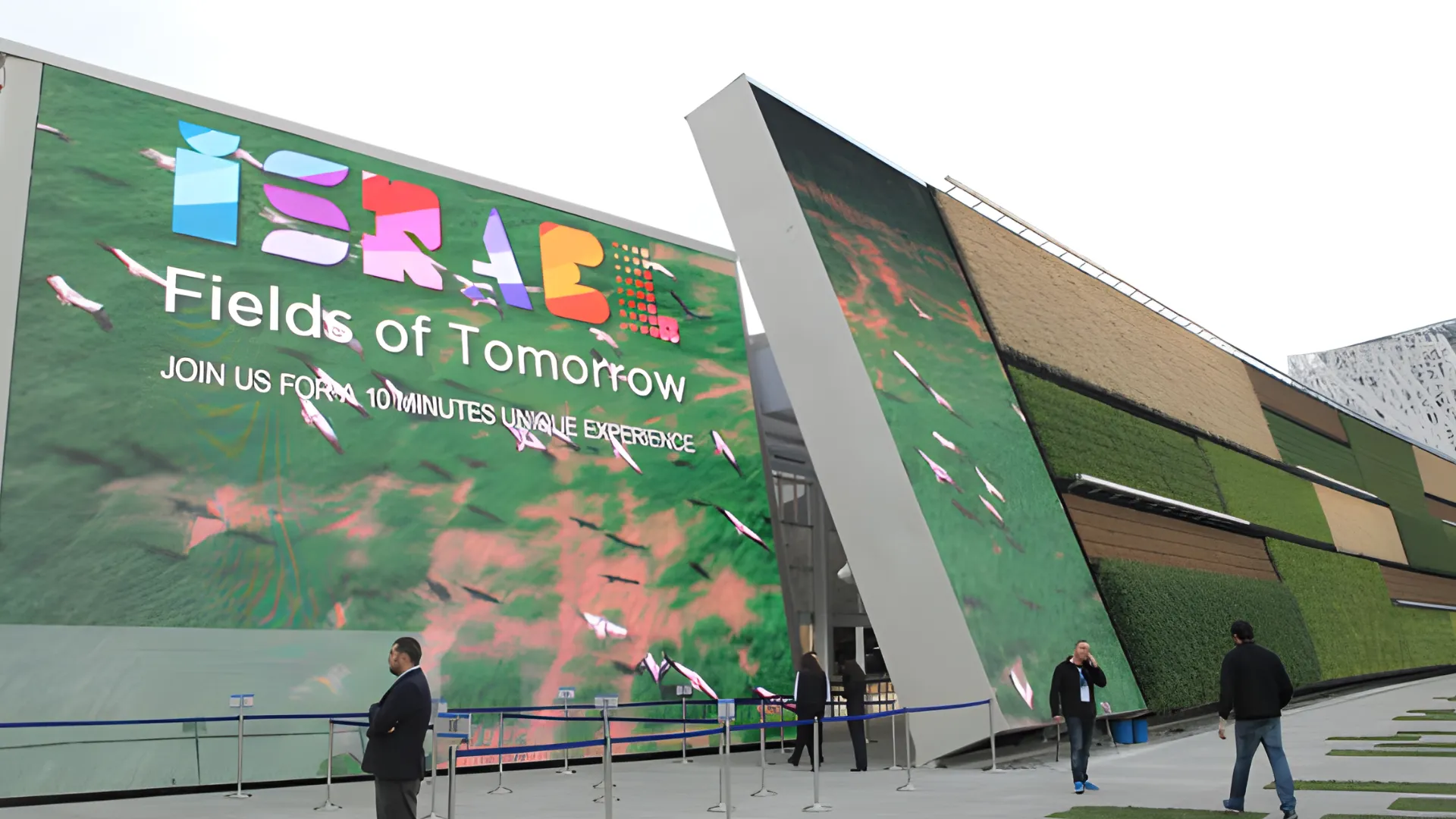

AQ Series is an outdoor fixed LED display platform for DOOH advertising, building façades, outdoor retail media and transportation projects. Five pixel pitches, four cabinet formats, front and rear service access, up to 5,500 cd/m² brightness, 7,680 Hz refresh rate and IP65 protection on both front and rear support long-term installations with different viewing distances, screen dimensions and maintenance conditions.
Discuss Your AQ Project
AQ Series should be configured around the finished installation rather than selected as a standalone cabinet. Pixel pitch, active display dimensions, native resolution, cabinet mapping, service direction, supporting structure tolerances and power distribution should be coordinated before production. The common 250×500 mm module platform supports four cabinet formats, allowing the screen layout to follow the architectural opening while maintaining consistent module alignment. Corner, curved and mixed-size sections should be confirmed in approved shop drawings.
Instead of treating brightness, corners, curves and weather protection as isolated features, AQ should be engineered as one façade system. Each study below addresses a condition that changes the finished installation.
01 / DAYLIGHT
AQ3.9 is listed at 5,000–5,500 cd/m², AQ4.8 at 5,000 cd/m², and AQ6.9, AQ8.3 and AQ10.4 at 5,500 cd/m². Screen orientation, peak sunlight, operating hours and local nighttime luminance limits should define the final brightness schedule.
Flat runs, building corners and curved transitions must be resolved in the cabinet map before the supporting steel and cable routes are frozen.

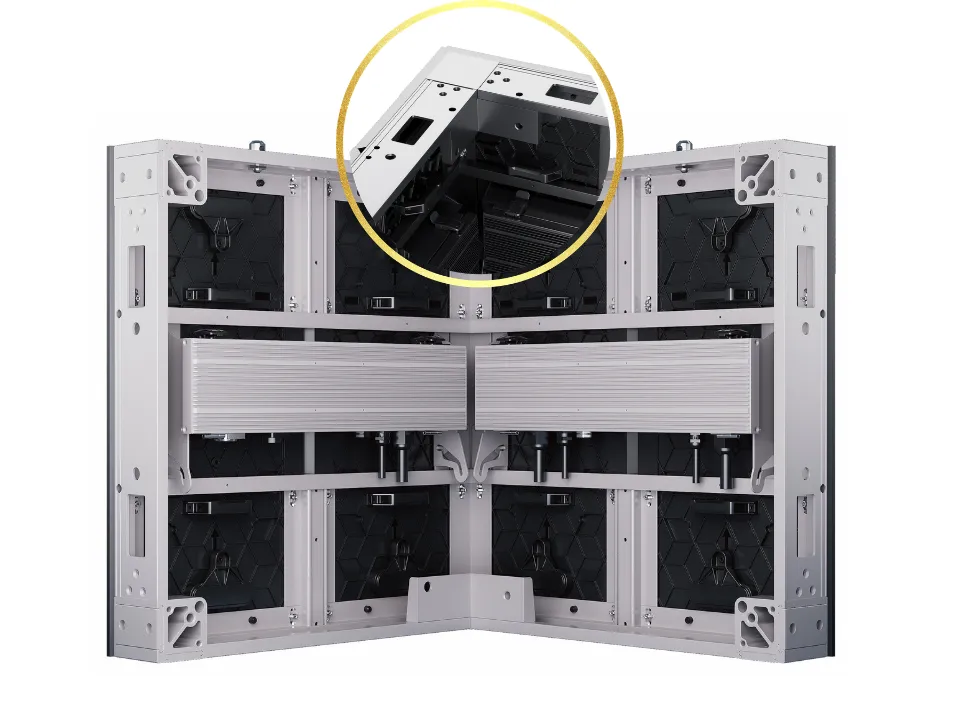

Right-angle configurations allow two display planes to meet around a building corner. Confirm cabinet orientation, service direction, seam control, cable routing and structural tolerances in approved elevation and section drawings.

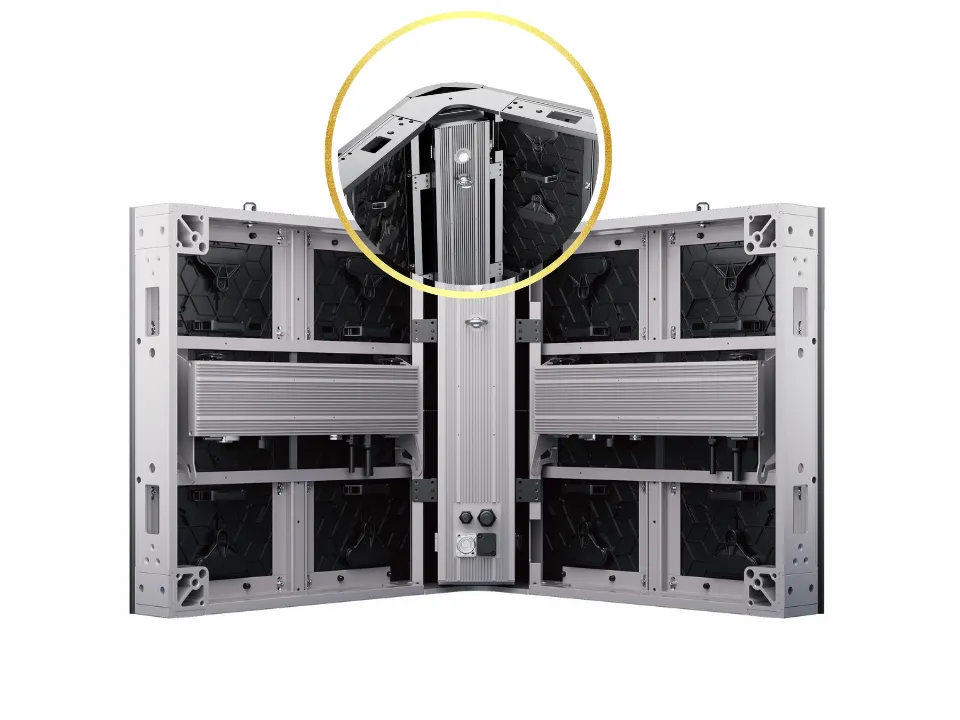

Compatible curved modules support a stated maximum ±5° concave or convex transition. The finished radius depends on module type, cabinet sequence and supporting geometry, so a dimensioned cabinet map is required.

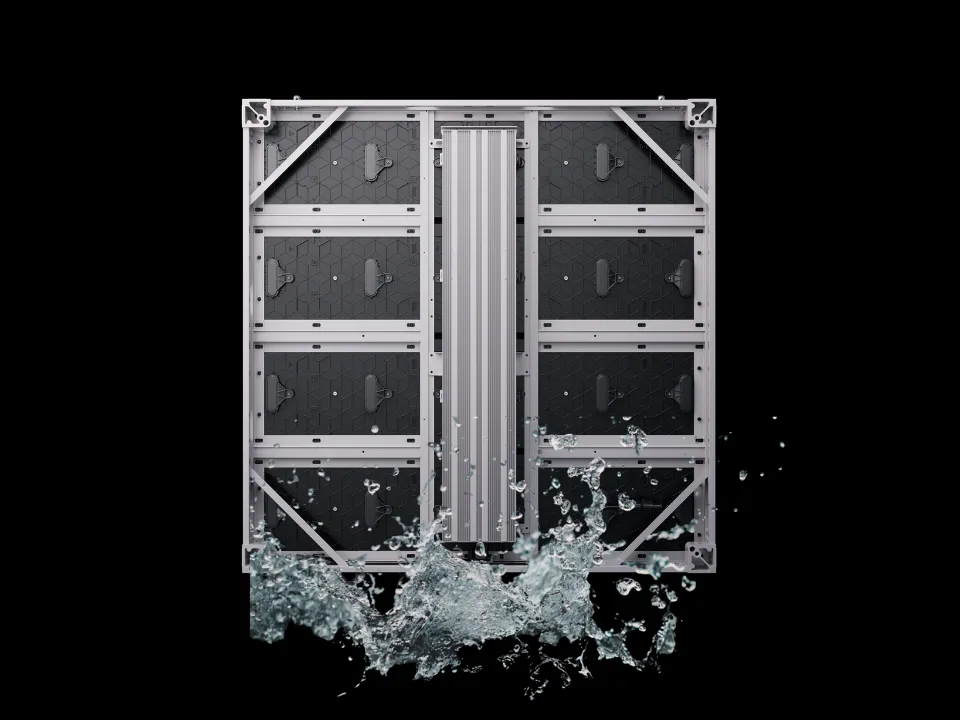

Front-and-rear IP65 supports outdoor fixed installations exposed to rain and dust, but the completed façade still requires sealed cable entries, drainage, ventilation, corrosion protection and inspection access.
04 / WEATHER
Roadside and large-format media networks need readable content at long viewing distances, controlled daytime brightness and an electrical design based on maximum connected load.

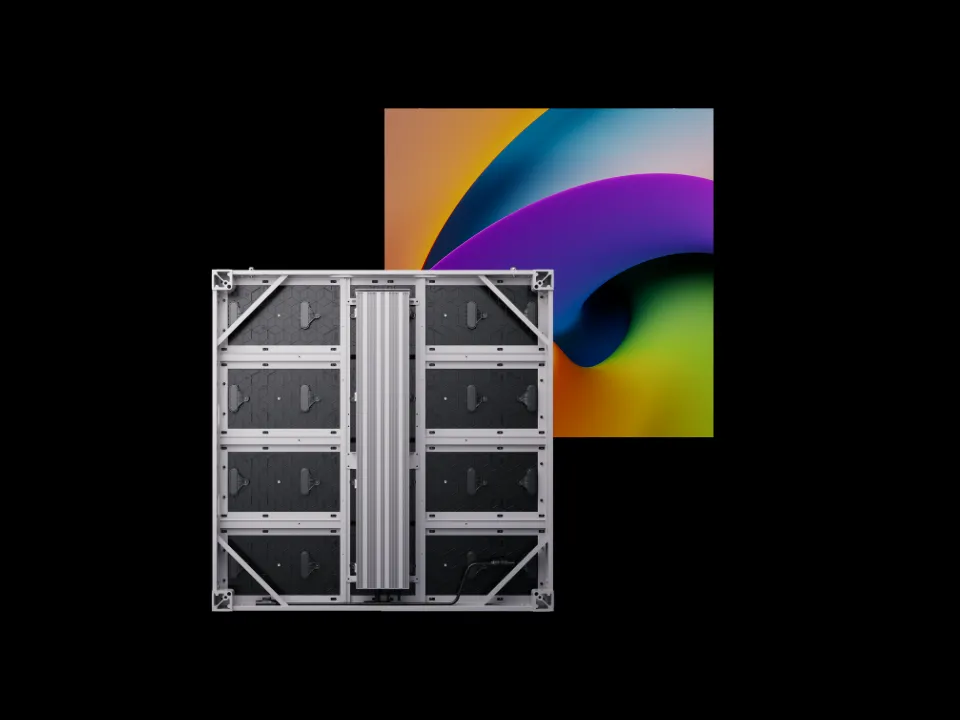

Slim cabinets and front-service access support wall-mounted media façades where rear clearance is restricted and architectural interfaces must remain coordinated.
Exterior retail façades, mall entrances and outdoor plazas require brand content that remains readable in daylight and fits the finished architectural opening.
Airports, railway stations and transit facilities require wide viewing coverage, high refresh performance and planned maintenance access within public operating environments.
The footage shows an AQ Series outdoor fixed LED display operating in a permanent commercial installation in Romania, demonstrating daylight visibility and consistent image presentation across the completed screen.

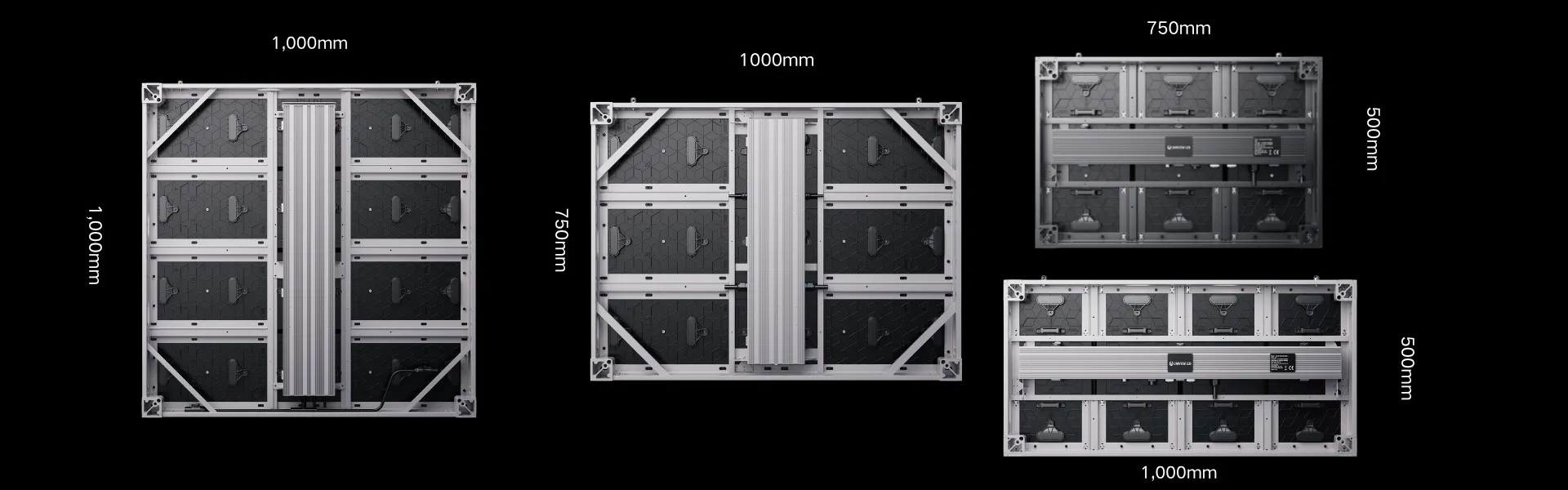

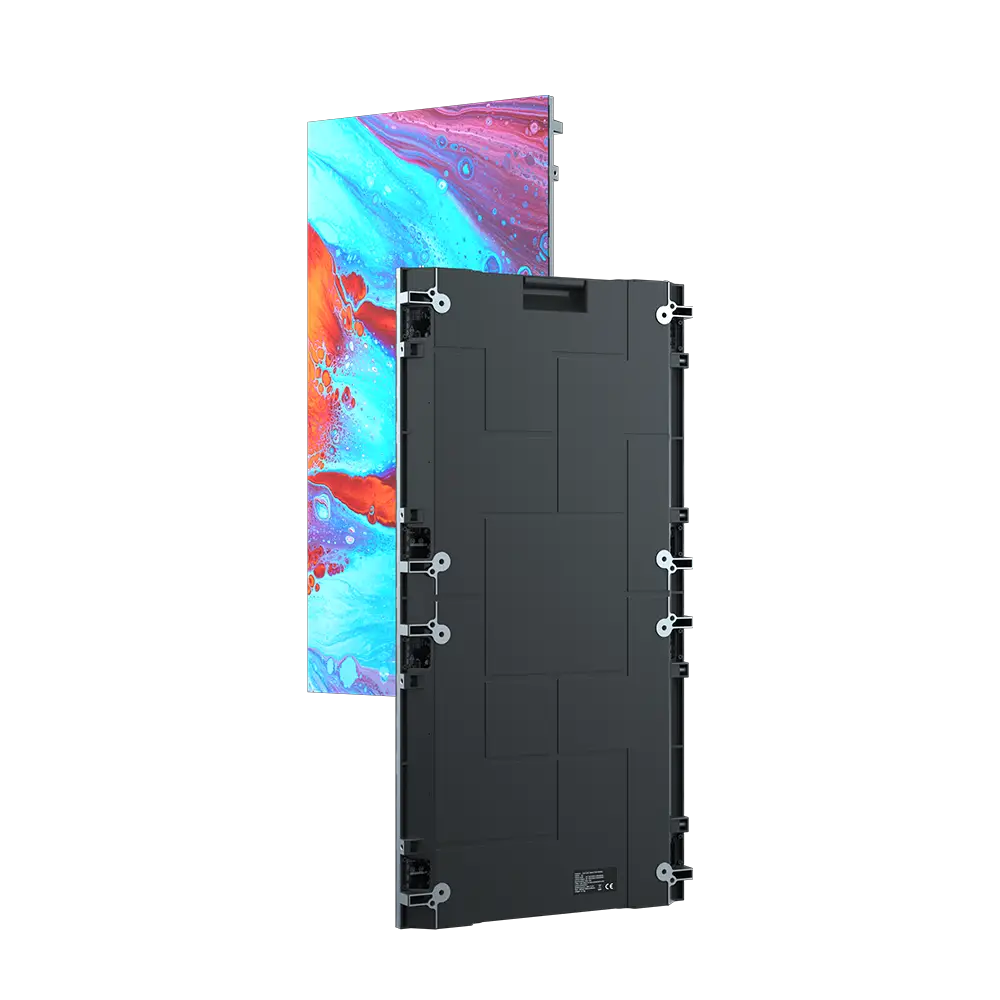

Four cabinet formats share a 250×500 mm module platform, allowing the active display dimensions to follow the finished architectural opening.
Horizontal and vertical correspondence: the listed weights map directly to the four W×H cabinet formats above. Cabinet depth varies by model from 83.6 to 86.7 mm.
Mixed-size layouts: confirm module alignment, final native resolution, fixing points, circuit zones and spare-cabinet quantities in the approved cabinet map.
Special structures: right-angle, round-corner and curved sections require matching structural details. Compatible curved modules are stated up to a maximum ±5°.
Six outdoor-specific parameters are shown for fast project comparison. Cabinet weight remains in the Cabinet Dimensions section; IP65 protection and service access are kept here because they are critical to outdoor product selection.
Swipe horizontally to compare models.
| Parameter | AQ3.9 | AQ4.8 | AQ6.9 | AQ8.3 | AQ10.4 |
|---|---|---|---|---|---|
| Pixel Pitch | 3.906 mm | 4.807 mm | 6.944 mm | 8.333 mm | 10.417 mm |
| Adjustable Brightness | 5,000–5,500 cd/m² | 5,000 cd/m² | 5,500 cd/m² | 5,500 cd/m² | 5,500 cd/m² |
| Refresh Rate | 7,680 Hz | 7,680 Hz | 7,680 Hz | 7,680 Hz | 7,680 Hz |
| Cabinet Size (W×H×D) | 1000×1000×83.8 / 1000×500×83.8 / 750×1000×83.8 / 750×500×83.8 mm | 1000×1000×83.6 / 1000×500×83.6 / 750×1000×83.6 / 750×500×83.6 mm | 1000×1000×86 / 1000×500×86 / 750×1000×86 / 750×500×86 mm | 1000×1000×85.2 / 1000×500×85.2 / 750×1000×85.2 / 750×500×85.2 mm | 1000×1000×86.7 / 1000×500×86.7 / 750×1000×86.7 / 750×500×86.7 mm |
| Power Consumption (Max / Avg) | 630 / 210 W/m² | 630 / 210 W/m² | 600 / 200 W/m² | 600 / 200 W/m² | 600 / 200 W/m² |
| Protection / Service | IP65 front & rear / Front & rear service | IP65 front & rear / Front & rear service | IP65 front & rear / Front & rear service | IP65 front & rear / Front & rear service | IP65 front & rear / Front & rear service |
Confirm these four items with the display manufacturer, structural engineer, electrical contractor and control-system team before production.
Confirm active display dimensions, native resolution, cabinet orientation and mixed-size transitions in the approved cabinet map. Structural drawings should define fixing points, dead load, engineer-calculated wind load, leveling tolerances, drainage and maintenance access.
Select front, rear or combined service access before the supporting structure and cable routes are finalized. Retain safe removal paths for modules, power supplies, receiving cards and fasteners.
Define maximum connected load, circuit zoning, grounding, surge protection, controller location, signal routing, spare ports and any required power or signal redundancy.
Retain receiving-card configuration, controller backups, calibration data, approved brightness schedules, test records and operator handover documents for future service and component replacement.
Six common commercial and engineering questions covering brightness, pixel pitch, project cost, service access, IP65 protection and façade geometry.
AQ Series provides 5,000–5,500 cd/m² depending on model and is designed for outdoor fixed displays such as DOOH media, façades and transportation projects. Final suitability still depends on façade direction, peak sunlight, operating hours and local nighttime luminance limits. Define separate daytime and nighttime brightness schedules before production.
Choose pixel pitch from the nearest regular viewing distance, active display size, content detail and target resolution. AQ is available in 3.906, 4.807, 6.944, 8.333 and 10.417 mm. Finer pitches are more suitable for closer viewing and detailed content, while larger pitches are generally used for longer-distance outdoor media.
There is no reliable single price because total project cost changes with pixel pitch, screen area, cabinet mapping, supporting steel, control system, power distribution, installation, freight and service requirements. For an accurate AQ quotation, provide the active dimensions, viewing distance, project country, installation height, service direction and site drawings.
Yes. AQ Series supports front service as well as rear service, so it can be considered for wall-mounted outdoor screens with restricted rear clearance. The complete wall depth must still allow for structure, cable bend radius, drainage, ventilation and safe removal of modules, power supplies, receiving cards and fasteners.
AQ Series is specified with IP65 protection on both the front and rear for outdoor fixed installation. IP65 does not replace sealed cable entries, drainage, ventilation, corrosion planning or routine inspection. Coastal sites, high temperatures and directly exposed rear-service locations require additional environmental review.
Yes. AQ supports flat, right-angle, round-corner and curved configurations, with compatible curved modules stated up to a maximum ±5°. The finished curve radius depends on module type, cabinet sequence and structural geometry, so plan, elevation and section drawings should identify every corner or curved transition before fabrication.
