Fine-Pitch Indoor Rental / Close-View Production

MT Series Close-View Rental LED

Name: MT Series Fine-Pitch Indoor Rental LED Display
Brand: Uniview LED

A 500 × 500 mm fine-pitch rental platform for conferences, exhibitions, broadcast production and premium indoor stages. Four models from P1.562 to P2.604 combine 7,680 Hz refresh, modular service access and hanging or stacking installation.

Request an MT Configuration Compare Models

FOCUS BENCH / MT

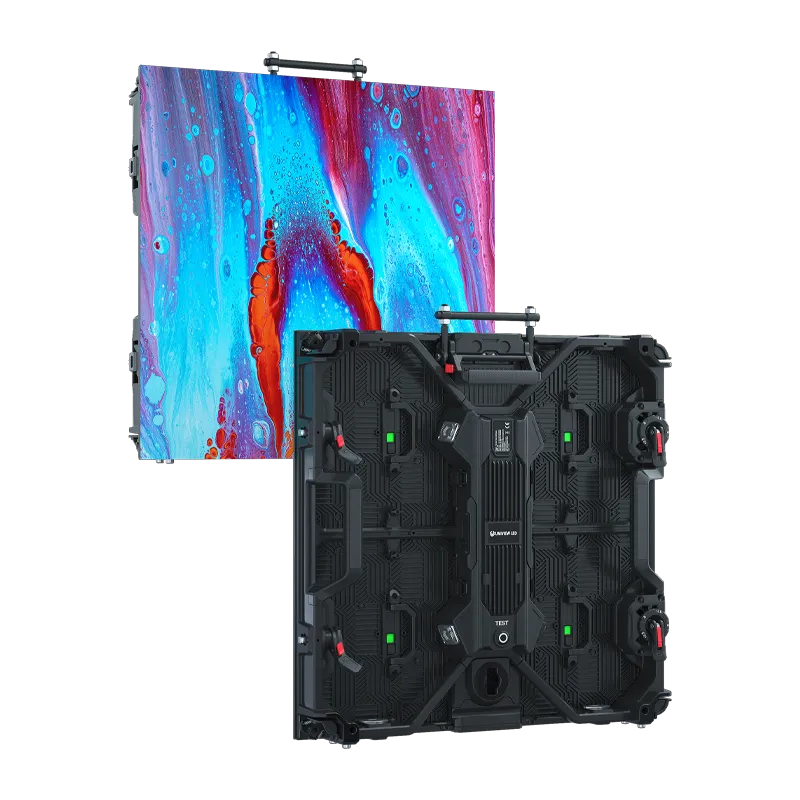

MT Series 500 × 500 mm fine-pitch rental LED cabinet shown from the display side and rear service side — 500 × 500 mm / 75.2 mm DEPTH

MT1.51.562 mm≈1.5 m

MT1.91.953 mm≈2.0 m

MT2.32.314 mm≈2.5 m

MT2.62.604 mm≈2.8 m

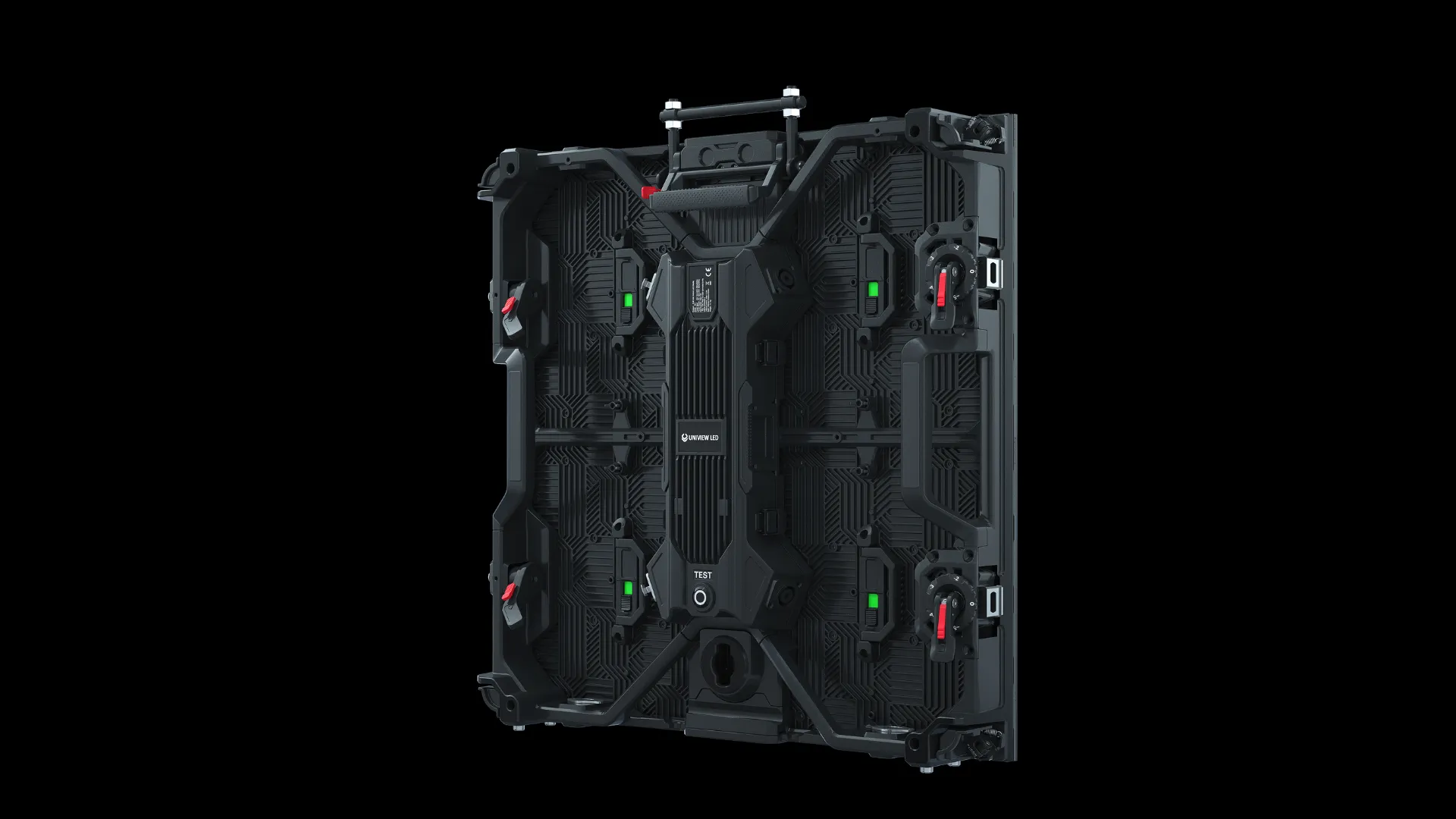

MT Series fine-pitch indoor rental LED display for a professional event stage — PROJECT REFERENCE / PREMIUM INDOOR STAGE

1.562–2.604mm pixel pitch

1000–1500cd/m² by configuration

7,680 Hzcamera-facing refresh

160° / 160°viewing angle

Focus Selection

Fine pitch should be chosen from what the audience actually sees.

MT is designed for close-view indoor rental where small text, camera framing, cabinet alignment and native resolution matter more than headline brightness alone.

INPUT 01 Viewing Distance

Start with the nearest regular viewer—not the average seat in the room.

INPUT 02 Content Detail

Charts, UI, presentation text and product visuals push the project toward finer pitch.

INPUT 03 Camera Distance

Close camera shots make scan mode, refresh, grayscale and calibration part of model selection.

INPUT 04 Wall Resolution

Cabinet count × native cabinet resolution defines the final content canvas.

Engineering boundary MT is an indoor IP30 platform specified for 0–40°C. Outdoor weather exposure and installations without required service clearance are outside the published configuration.

Production Lab

Three benches before the wall is show-ready.

MT’s practical value is easiest to evaluate as three production tasks: validate the camera image, reduce service time and lock the intended screen geometry.

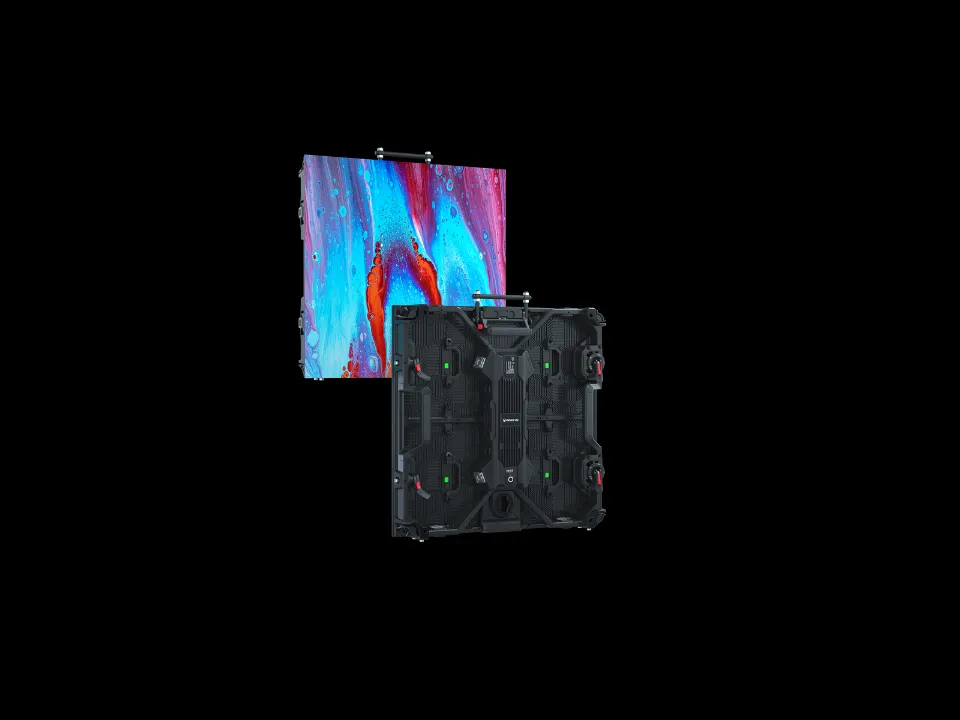

MT Series fine-pitch LED modules showing detailed indoor image reproduction — BENCH 01 / CAMERA

Camera Bench

7,680 Hz is tested as part of a complete camera chain.

All MT models support 7,680 Hz. MT1.5 and the common-cathode MT1.9 option provide 16-bit grayscale; other listed configurations provide 15-bit. Final results also depend on scan mode, processor settings, brightness, frame rate, shutter angle and calibration.

Test chaincontent → processor → receiving card → brightness → shutter → lens

Service Bench

Find the fault, replace the part, return the wall to service.

Separately removable 250 × 250 mm modules, power box and cabinet frame reduce unnecessary handling. Red-green identification marks support faster fault location during live-event service.

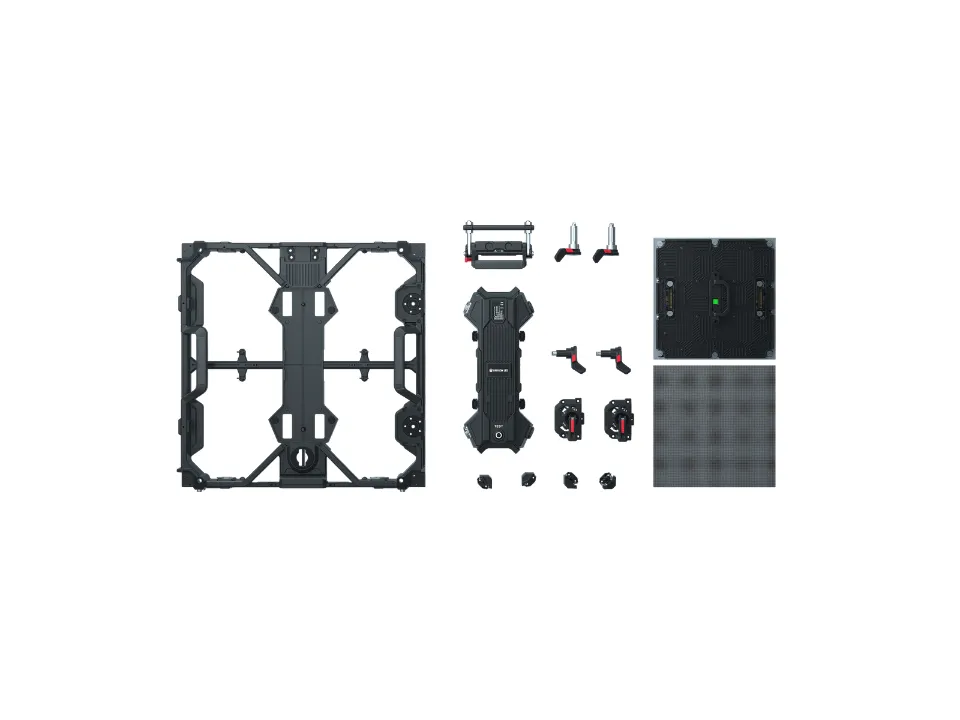

MT Series modular cabinet structure with removable LED module and power box — 01ISOLATE

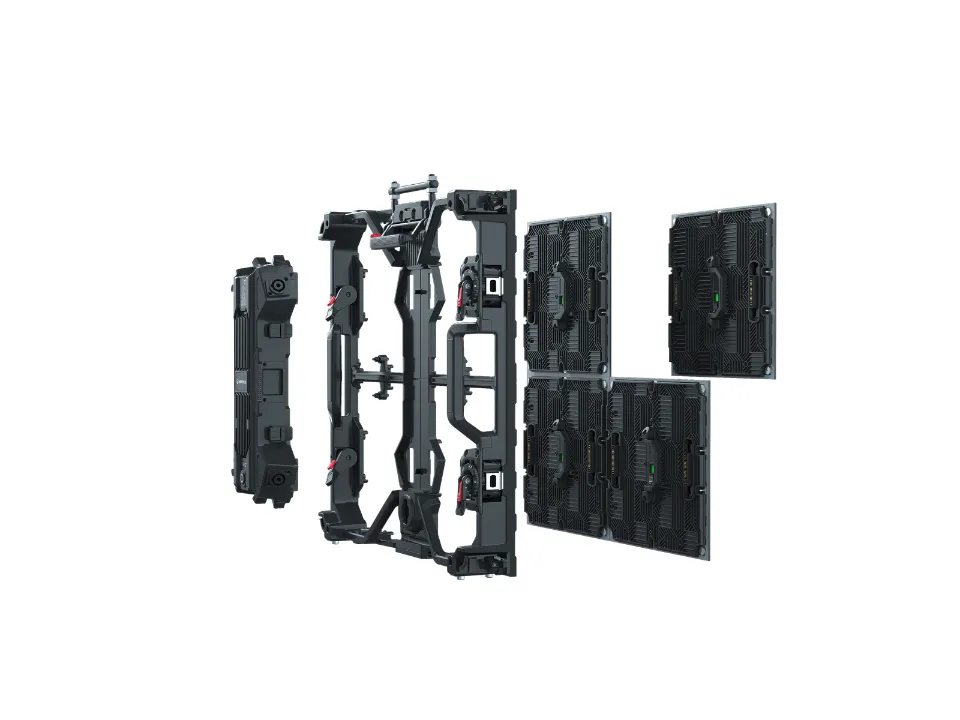

MT Series quick-service cabinet components for indoor rental maintenance — 02REMOVE

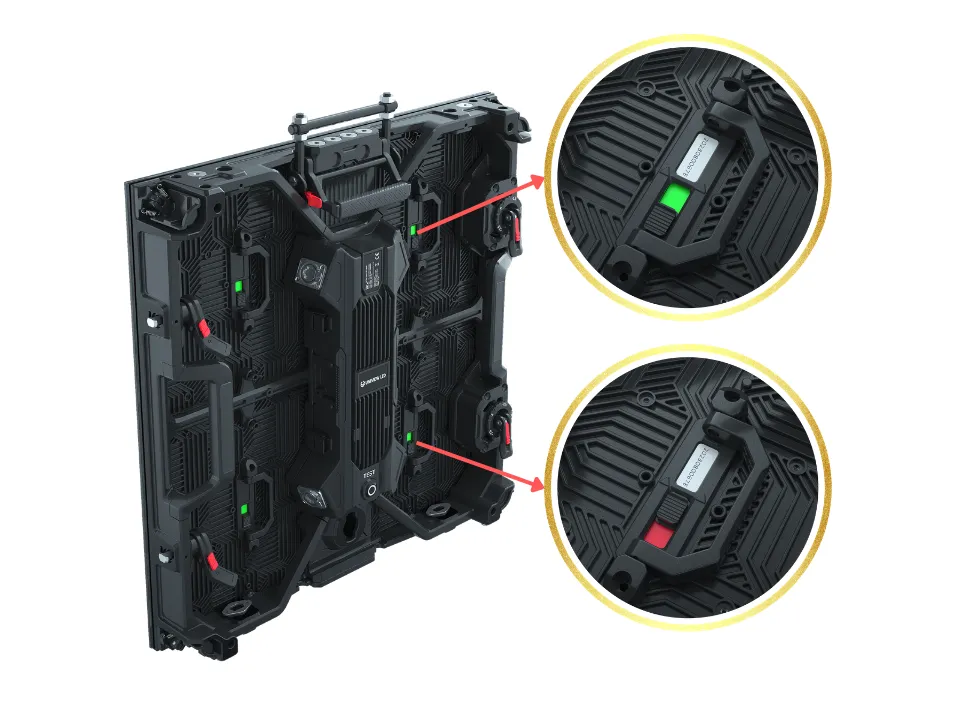

MT Series red and green module identification marks for fault location — 03IDENTIFY

Geometry Bench

Curves are specified as hardware positions—not as a visual wish.

Standard inner-curve positions are 0°, −2°, −3°, −4° and −5°. An optional lock set provides 0°, ±2.5° and ±5°. Hanging and stacking are both supported, but the final radius and load path still require approved drawings.

−5°−4°−3°−2°0°+2.5°+5°

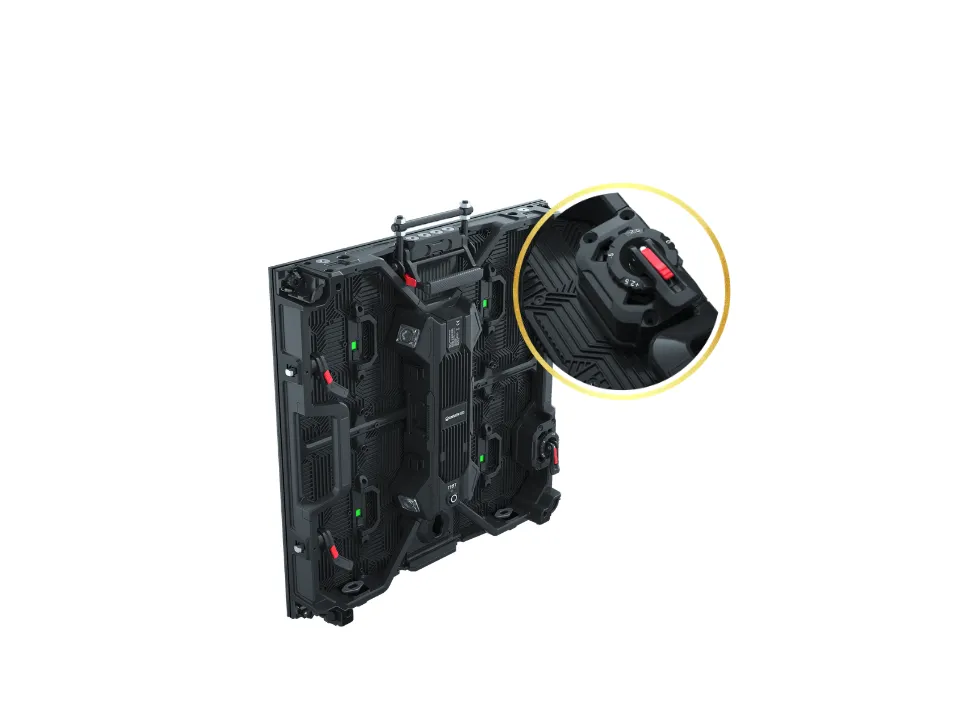

MT Series adjustable curve lock for precise concave and convex cabinet angles — CURVE LOCK

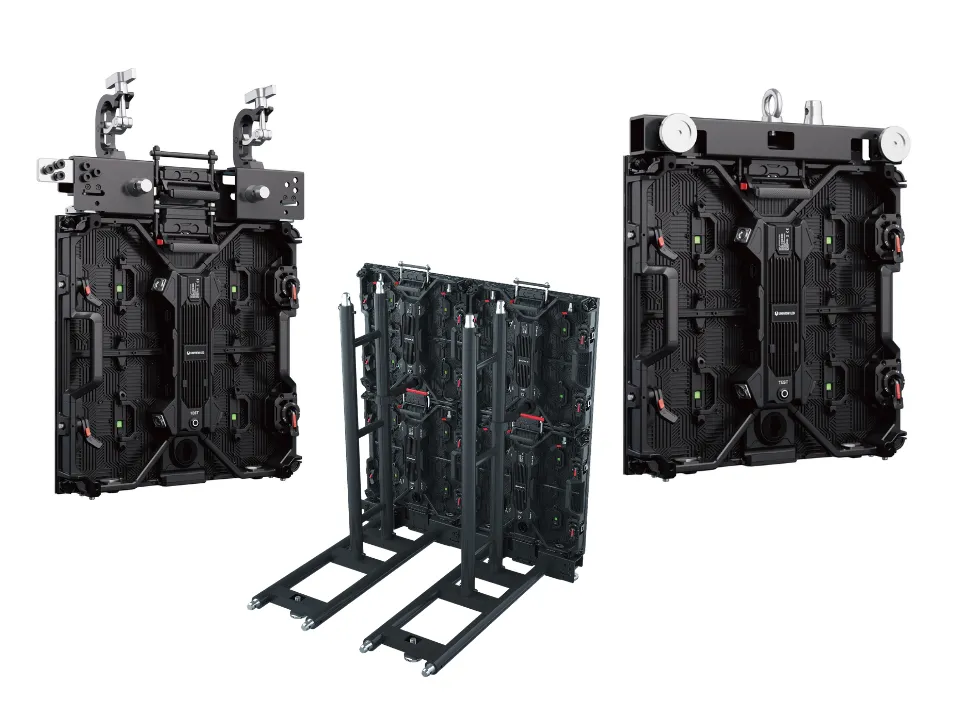

MT Series rental LED display prepared for hanging and stacking installation — HANG / STACK

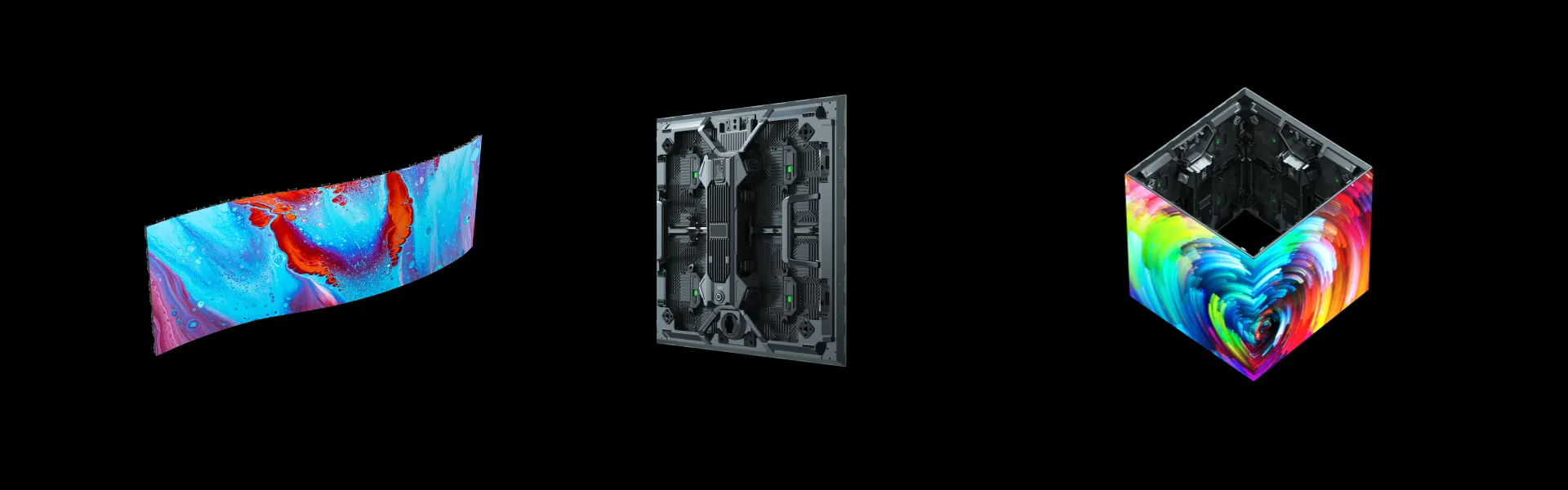

MT Series rental LED cabinets configured as a curved wall, vertical display, and cube installation — GEOMETRY REFERENCE / CURVED · VERTICAL · CUBE

Close-View Use Matrix

Where extra pixel density creates visible value.

MT makes most sense when the audience or camera is close enough to reveal the limits of a coarser rental platform.

Corporate Conferences

Presentation text, charts and front-row viewing reward finer pitch.

detail / text / front row

Product Launches

Fine product imagery and premium branded environments benefit from tighter pixel density.

detail / brand / close view

Broadcast & Livestream

Refresh, grayscale and exposure are commissioned as one camera workflow.

camera / calibration / sync

Premium Stage Design

Curved, stacked and suspended layouts add geometry without giving up close-view detail.

geometry / rigging / image

Camera Room

Reference footage from a real London conference.

Use project footage to review screen proportion and camera-facing presentation quality. Exact pixel pitch, controller configuration and operating settings should still be confirmed from the project record.

Cabinet Architecture and Dimensions

One cabinet format with four native resolutions

Cabinet size500 × 500 × 75.2 mm

Module layoutFour 250 × 250 mm modules per cabinet

Cabinet weight7.6 kg per cabinet

Native resolutionMT1.5: 320 × 320; MT1.9: 256 × 256; MT2.3: 216 × 216; MT2.6: 192 × 192

InstallationHanging or stacking; curve-lock hardware depends on the specified angle set

Cabinet availability: The current MT platform is documented with a 500 × 500 mm cabinet. Alternative cabinet dimensions or mixed-size layouts should be confirmed separately for project-specific requirements.

Core Specifications

MT model comparison

Six core rental parameters are shown for fast model comparison. MT1.5 and MT1.9 have multiple approved configurations; confirm the exact version in the signed project datasheet.

Swipe horizontally to compare models.

Parameter	MT1.5	MT1.9	MT2.3	MT2.6
Pixel Pitch	1.562 mm	1.953 mm	2.314 mm	2.604 mm
Brightness	1200 cd/m²	1000 / 1200 / 1500 cd/m²	1200 cd/m²	1000 cd/m²
Refresh Rate	7680 Hz	7680 Hz	7680 Hz	7680 Hz
Cabinet Size	500 × 500 × 75.2 mm	500 × 500 × 75.2 mm	500 × 500 × 75.2 mm	500 × 500 × 75.2 mm
Power Consumption (Max / Avg)	540–600 / 180–200 W/m²	576–600 / 190–200 W/m²	540 / 180 W/m²	540 / 180 W/m²
Curve / Installation	0°, −2° to −5° standard; optional 0°, ±2.5°, ±5° · Hang / Stack	0°, −2° to −5° standard; optional 0°, ±2.5°, ±5° · Hang / Stack	0°, −2° to −5° standard; optional 0°, ±2.5°, ±5° · Hang / Stack	0°, −2° to −5° standard; optional 0°, ±2.5°, ±5° · Hang / Stack

Evaluation Desk

Move from product review to project decision.

Handoff Bench

Four records before the system leaves engineering.

Close-view rental projects are easier to rebuild and troubleshoot when mapping, camera settings, rigging geometry and service records stay with the inventory.

Screen Map

Active dimensions, cabinet count, native resolution, curve radius and content canvas.

Power & Signal

Voltage, maximum load, controller outputs, receiving-card map and cable routes.

Camera Record

Frame rate, shutter, processor settings, brightness and accepted rehearsal configuration.

Service Archive

Labeled spares, calibration data, fault map, tools and technician responsibilities.

Buyer FAQ

Fine-Pitch Rental LED Questions Buyers Ask First

Six common questions covering pixel pitch, camera performance, brightness, cost, curved walls and installation/service planning.

01Which MT pixel pitch should I use for a 1.5–3 m viewing distance?

Use MT1.5 from about 1.5 m, MT1.9 from around 2 m, MT2.3 from roughly 2.5 m and MT2.6 from around 2.8 m. Final choice should also consider smallest text size, camera distance, active dimensions and required native resolution.

02Is 7680 Hz refresh rate suitable for broadcast cameras and live event filming?

Yes. Every listed MT model supports 7680 Hz, providing a strong starting point for conferences, broadcast sets, livestreams and stage production. Final camera performance also depends on scan mode, grayscale, brightness, processor settings, frame rate, shutter angle and calibration.

03Should an indoor rental LED wall use 1000, 1200 or 1500 nits?

Select brightness from measured ambient light and the camera workflow rather than simply choosing the highest value. MT configurations range from 1000 to 1500 cd/m². Confirm ambient light, camera exposure, operating brightness, exact MT1.9 configuration and power capacity.

04How much does a fine-pitch indoor rental LED screen cost?

There is no reliable single price because total system cost changes with pixel pitch, cabinet quantity, control system, rigging hardware, flight cases, spare-parts ratio, power distribution and service scope. For an accurate MT quotation, provide active dimensions, viewing distance, project country, installation method and camera requirements.

05Can MT cabinets build curved LED walls with 2.5° or 5° angles?

Yes, when the correct curve-lock hardware is specified. Standard inner-curve positions are 0°, −2°, −3°, −4° and −5°, while the optional lock set provides 0°, ±2.5° and ±5°. Final radius depends on cabinet count, angle, arc length and support geometry.

06Can MT be installed by both hanging and stacking, and how is it serviced?

Yes. MT supports hanging and stacking and uses separately removable modules, power box and cabinet frame. The service plan should define access clearance, labeled spares, receiving-card mapping, calibration-data storage and onsite tools before production.
