Thermal Management for Outdoor LED Displays: Why Heat Dissipation Matters
Outdoor LED displays used for DOOH advertising, transportation systems, sports venues and public spaces often operate under direct sunlight, high ambient temperatures and changing weather conditions. In these environments, thermal management becomes an important part of display system design.
High brightness helps maintain visibility in daylight, but it also makes heat management more important. A reliable outdoor LED display therefore needs to balance brightness, heat dissipation and environmental protection rather than treating them as separate design considerations.
Why Thermal Management Matters for Outdoor LED Displays

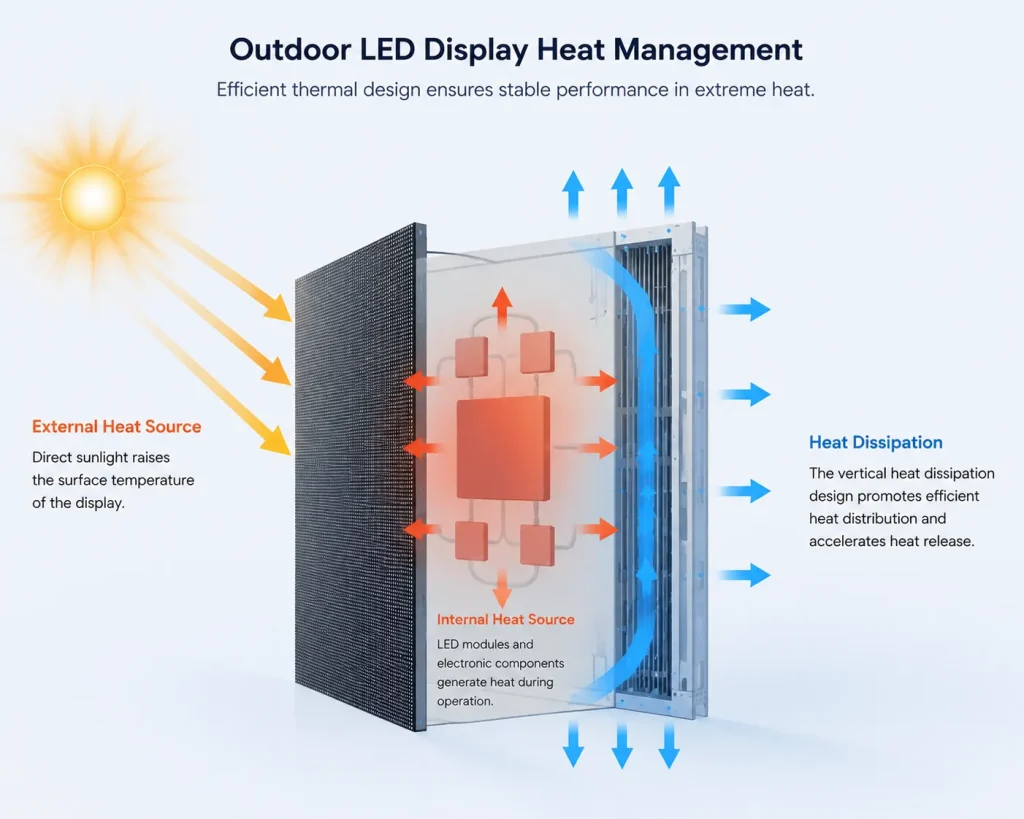

Outdoor LED displays are exposed to heat from two directions. Direct sunlight can raise the temperature of the cabinet and its surrounding environment, while LED modules, power supplies and other electronic components generate heat during operation.
If that heat is not distributed and released effectively, prolonged thermal stress can affect component stability, display consistency and long-term reliability. Thermal design is therefore part of the overall LED display architecture, not simply an additional cooling feature.
Solar Heat
Direct sunlight can add significant external heat to an outdoor LED cabinet, particularly during long operating periods.
Internal Heat
LED modules and electronic components generate heat continuously while the display is operating.
Continuous Operation
Outdoor media and public-space displays may operate for extended periods, making stable thermal conditions an important design consideration.
Balancing Brightness and Heat Dissipation
High brightness is essential for outdoor LED displays because content needs to remain legible under strong daylight. But brightness cannot be considered independently from thermal performance.
Higher light output increases the importance of controlling heat generated within the LED display system. This is why outdoor LED engineering needs to consider luminance, power consumption, cabinet structure and heat dissipation together.
The objective is not simply to build a brighter display. It is to maintain the required daylight visibility while providing a thermal path that supports stable operation over extended use.
How RK Pro Approaches Outdoor Thermal Management
Based on this design approach, the RK Pro Series combines high-brightness outdoor LED performance with a cabinet structure designed around heat dissipation and environmental protection.
The series uses a vertical heat dissipation design across the cabinet. Rather than relying on conventional fan-based cooling, RK Pro uses a fanless and air-conditioning-free thermal management approach, with the cabinet structure providing the main thermal path.
Vertical Heat Dissipation
The cabinet is designed around vertical heat dissipation to help distribute and release heat through the display structure.
Fanless Thermal Management
Eliminating conventional cooling fans reduces the number of moving mechanical components within the cooling system.
Air-Conditioning-Free Design
The thermal architecture does not rely on external air-conditioning equipment for cabinet cooling.
High-Temperature Operation
The published RK Pro specification supports operation in demanding outdoor conditions, with the current product documentation listing operation up to +60°C.
Thermal Design Works Together with Display Performance
Thermal management is only one part of an outdoor LED display system. Brightness, refresh rate, cabinet structure, weather protection and maintenance access all contribute to how the display performs in its actual installation environment.
Brightness
Refresh rate
Front / rear protection
Pixel pitch options
Thermal Management Is Only One Part of Outdoor Reliability
Heat is not the only environmental challenge for an outdoor LED display. Rain, dust and changing weather conditions also need to be considered when the cabinet is designed for long-term outdoor deployment.
The RK Pro Series uses a die-cast aluminum cabinet together with front IP67 and rear IP65 protection. Its published design also includes a double-layer waterproof structure, helping the cabinet address both environmental protection and thermal requirements within the same enclosure architecture.
This is important because outdoor protection and thermal management have to work together. A cabinet designed for environmental sealing still needs a controlled path for internally generated heat.
What Should You Consider When Choosing an Outdoor LED Display?
Thermal management should be evaluated together with the actual project environment rather than treated as an isolated specification.
Before selecting an outdoor LED display, consider ambient temperature, direct sunlight, viewing distance, required brightness, pixel pitch, IP protection, service access, cabinet structure and operating hours.
For example, pixel pitch should be matched to the real viewing distance rather than selected independently. UniviewLED’s LED Display Viewing Distance Guide provides a starting point for connecting pixel pitch with viewing conditions.
Related Outdoor LED Display Considerations
Thermal performance is closely connected with other aspects of outdoor LED display engineering. These resources provide additional guidance when moving from general research to project specification.
Outdoor LED Display
Explore UniviewLED outdoor fixed LED display platforms for DOOH, façades, transportation and other outdoor installations.
IP Protection
Understand how IP ratings relate to outdoor LED display protection against dust and water exposure.
Viewing Distance
Connect pixel pitch with the actual viewing conditions of an outdoor LED installation.
Outdoor LED Performance Is More Than Brightness
Outdoor LED displays need to remain visible in daylight while operating under heat, sunlight and changing weather conditions. That makes thermal management an important part of the overall display architecture.
The RK Pro Series combines high-brightness outdoor LED performance with vertical heat dissipation, fanless thermal management, a die-cast aluminum cabinet and IP67/IP65 protection.
The result is an outdoor LED platform designed around the conditions that matter on site — not brightness alone, but the relationship between visibility, thermal performance, environmental protection and long-term operation.
