LED Poster Display: A P1.56 COB Digital Signage Guide for Retail and Events
An LED poster display combines a fine-pitch LED canvas, supporting structure, controller and mobile base into one floor-standing digital signage unit.
Uniview LED Poster Series uses a P1.5625 COB display with a vertical 384 × 1296 native resolution, 600 cd/m² calibrated brightness, 3,840 Hz refresh rate and front-service architecture.
Its real advantage is operational: the same display can be stored, transported, rolled into position, updated remotely and reused for another campaign without building a permanent LED wall.
What Is an LED Poster Display?
An LED poster is a narrow, vertical direct-view LED display designed for close-viewing commercial signage. Unlike a fixed LED wall, it is normally supplied as a complete floor-standing unit that can be relocated and reused.
The Uniview LED Poster 1.56 COB provides approximately 600 × 2025 mm of active LED area. The complete unit measures approximately 613.9 × 2293.74 × 630.59 mm, with the wheeled base defining the real floor footprint.
This format is particularly useful where campaigns change frequently and permanent wall construction is unnecessary.
02 / CAMPAIGN RELAY
Think of the Product as a Reusable Campaign Asset
A mobile LED poster is easier to understand as a workflow than as a feature list. Its operating cycle can be reduced to five actions: Pack → Roll → Position → Publish → Multiply.

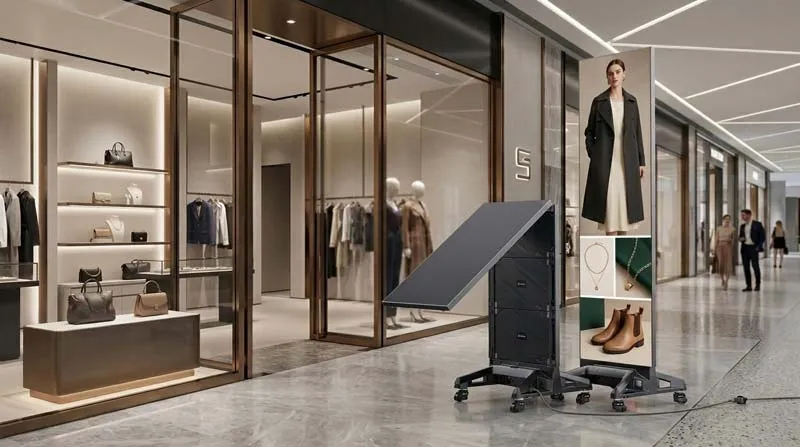

Fold and protect the display using its transport workflow. For exhibitions or repeated deployments, plan lift access, doors, ramps and handling around the complete packed unit.
The wheeled base allows the display to move between retail zones, showrooms, exhibition positions or reception areas without rebuilding a supporting frame.
Placement must account for the full 630.59 mm base depth, viewing distance, pedestrian routes, power access and cable management.
Smartphone and cloud workflows can support media publishing, scheduled playback and coordinated management when the approved controller and network configuration support them.
Multiple poster units can be mapped into a wider digital canvas when resolution, controller capacity, alignment, signal topology and content layout are planned together.
04 / WHAT ACTUALLY MATTERS
Six Features That Change the Daily Workflow
P1.5625 provides a 384 × 1296 native canvas for close-viewing vertical content such as product photography, campaign graphics and information signage.
LED modules are serviced from the display face, reducing the need for a rear maintenance corridor.
Folding supports transport and storage workflows. Project documentation should confirm the exact operating configuration before dual-side use is specified.
Casters allow the unit to move between campaign zones, but the final position must still maintain safe pedestrian clearance and cable routing.
Smartphone and cloud workflows support campaign updates, local or scheduled playback and multi-display coordination according to the approved control architecture.
Several identical units can become a wider digital surface when physical seams, content resolution and signal mapping are planned as one system.
05 / CORE SPECIFICATIONS
LED Poster 1.56 COB
Use these figures for initial model selection. Final controller, packing, commercial and electrical details should follow the approved quotation and datasheet.
06 / CONTENT CONTROL
A Smart Poster Still Needs a Defined Publishing Workflow
Prepare Content
Build vertical content around the native 384 × 1296 canvas or the final multi-unit mapped resolution.
Upload & Schedule
Smartphone or cloud management can distribute prepared media according to the configured playback platform.
Control Access
Define administrator accounts, network permissions, approval responsibilities and campaign schedules.
Maintain the Fleet
Record display locations, software configuration, inspection status and service responsibilities for each unit.
07 / DEPLOYMENT MATRIX
Where Mobility Matters More Than Permanent Installation
Store Entrances & Campaign Zones
Use the poster for product launches, new arrivals, promotional campaigns and vertical brand content where the screen may move as merchandising layouts change.
Trade Shows
Transport, position and republish content across a temporary exhibition cycle.
Showrooms
Display product details, brand films and visitor information without permanent wall construction.
Corporate Lobbies
Visitor information, corporate campaigns and event announcements in a movable vertical format.
Shopping Malls
Tenant campaigns, temporary promotion zones and movable wayfinding in controlled indoor environments.
08 / MULTI-UNIT CANVAS
One Poster Is Signage. Several Posters Become a Canvas.
Multiple LED Poster units can be arranged together, but the layout should be designed as a single LED system rather than simply placing independent units side by side.
Before deployment, freeze content resolution, controller capacity, synchronization, seam alignment, physical positioning and signal topology.
*Derived from three identical 384 × 1296 units arranged side by side. Final mapping depends on controller configuration.
09 / BUYER HANDOFF
Freeze These Decisions Before the Poster Starts Moving
A mobile display still needs a fixed operating standard. Document the placement, content, control and logistics rules so every deployment starts from the same approved configuration.
Viewing distance, floor footprint, pedestrian clearance, power location and cable route.
Native resolution, vertical creative format, schedule, brightness and approval process.
Synchronous or asynchronous playback, controller, network access and software responsibility.
Flight case, route access, handling method, lift requirements and storage procedure.
Front maintenance, spare parts, inspection method and technician access around the wheeled base.
10 / SELECTION TAKEAWAY
Choose an LED Poster by Workflow, Not Only by Screen Specifications
Pixel pitch, brightness and refresh rate determine image performance, but mobile commercial signage also depends on footprint, weight, transport, content management and service access.
The Uniview LED Poster Series is therefore best evaluated as a reusable indoor campaign terminal: a P1.56 COB display that can move between controlled commercial environments while keeping one consistent content and operating workflow.
View the current Uniview LED Poster product page for the latest approved specifications.
